Overview:

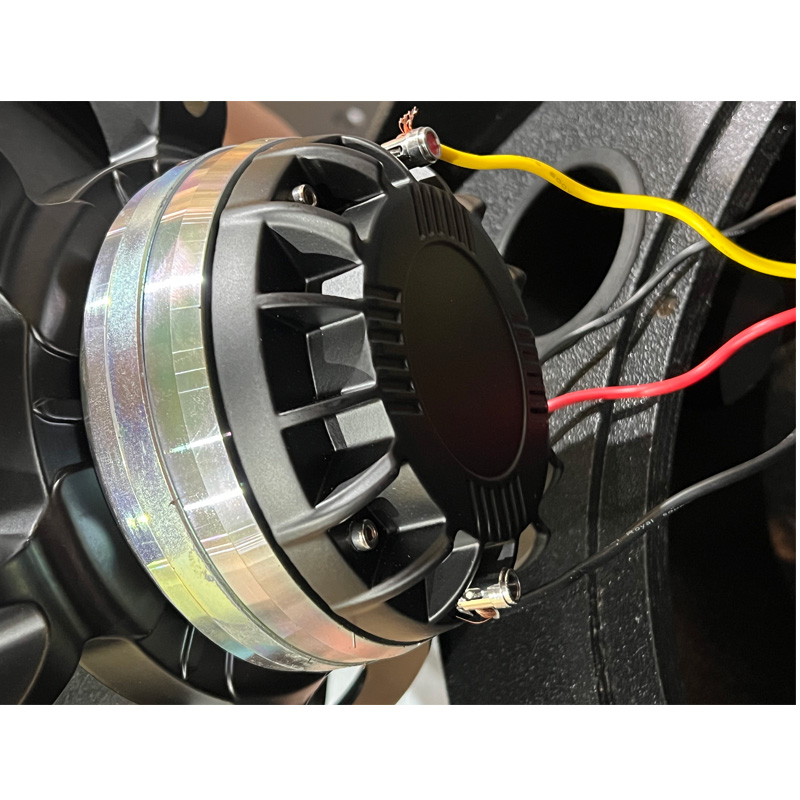

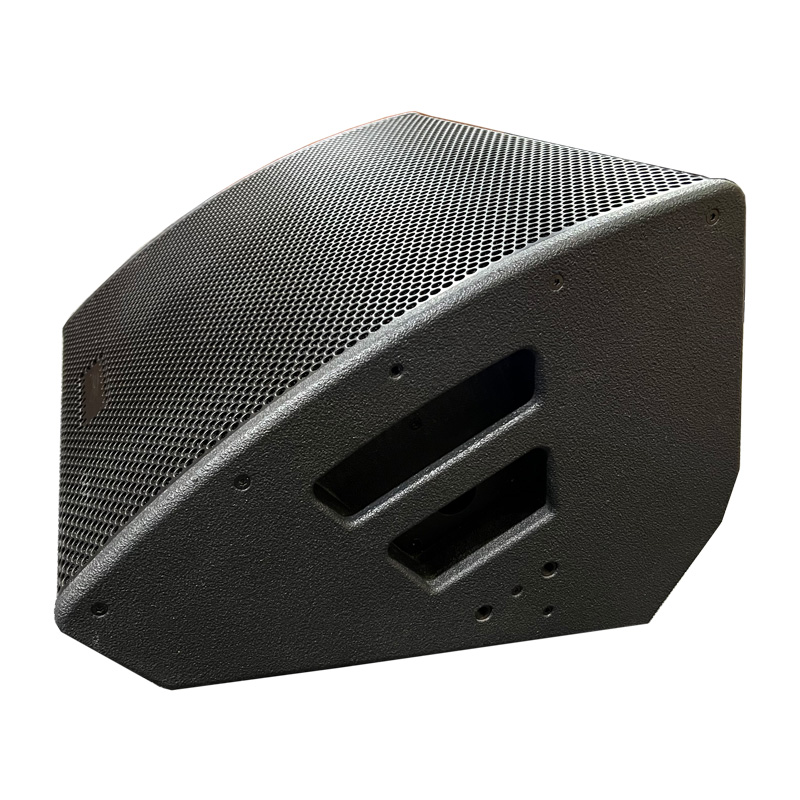

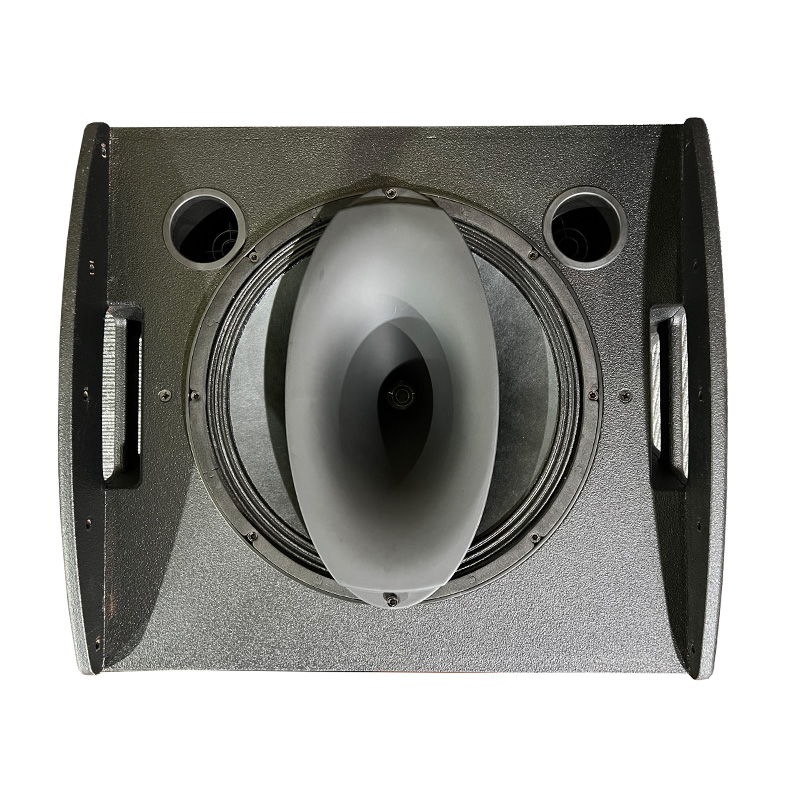

M4 is a two-way high performance stage monitor with a maximum sound pressure level of 134 dB. It consists of a 1.3 inch exit coaxial and one 15 inch neodymium woofer. Its constant pointing diffusion angle 50° x 70° (h x v) can accurately cover the stage area, and M4 can also serve as a powerful main expansion system. The M4 cabinet closure is made of good quality plywood and is coated with a layer of durable paint. There are two screw holes on each side panel for flexible mounting and a jack for speaker bracket mounting. Two chutes extending from the rear to the front of the box protect the bottom panel from scratching.
Feature:
1. Lightweight, compact monitor speaker.
2. 15 inch + 3 inch coaxial neodymium drivers.
3. Powered or Passive stage monitor.
4. Flexible mounting for different application.
Specification:
Frequency response (–5 dB standard) | 55 Hz - 17 kHz 4 |
Max. sound pressure (1m) | 134 dB7 / 135 dB 17 |
Configuration | 2-way stage monitor |
Nominal impedance | 8 Ω |
Power handling capacity (RMS/peak 10 ms) | 400/1600 W |
Nominal dispersion angle (h x v) | 50° x 70° rotatable |
Components | 15" driver with neodymium magnet |

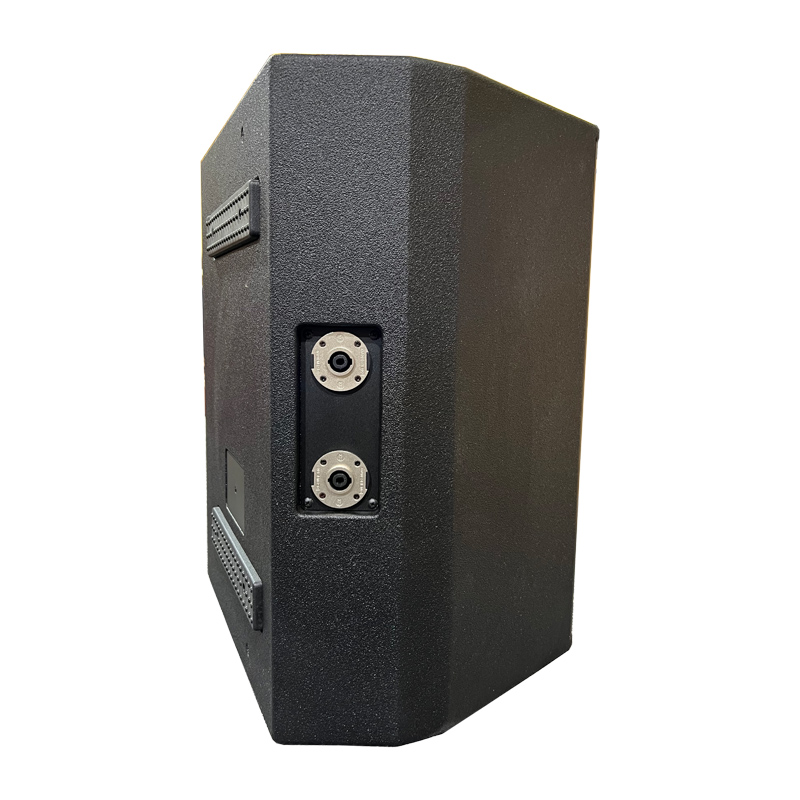

Connections | 2 x NLT4 F/M |
Dimensions (H x W x D) | 363 x 580 x 505 mm 2 |
Weight | 20 kg |
Demo of M4 15 inch monitor speaker:
