Description
The Q1 and Q-SUB line array sound system offers a complete audio solution for professional applications, combining superior sound quality, durability, and flexibility. Ideal for concerts, large events, and high-demand installations, this system ensures an exceptional audio experience with every performance.
Q1 line array loudspeaker consists of 2x10 inch neodymium LF speaker driver, 1x3 inch HF speaker driver, providing rich bass and crisp highs.
Q-SUB Single 18 inch subwoofer is designed to complement the Q1 Line Array, providing powerful low-frequency reinforcement to enhance the overall audio experience.
The 2 way line array live sound system built with durable birch plywood and waterproof polyurea paint to withstand rigorous professional use and ensure long-term reliability.
Features
Live Concerts and Music Festivals
Theatrical Productions
Sports Venues
Corporate Events and Conferences
Speech Intelligibility
Houses of Worship
Themed Entertainment and Attractions
Public Announcements and Transport Hubs
Specification

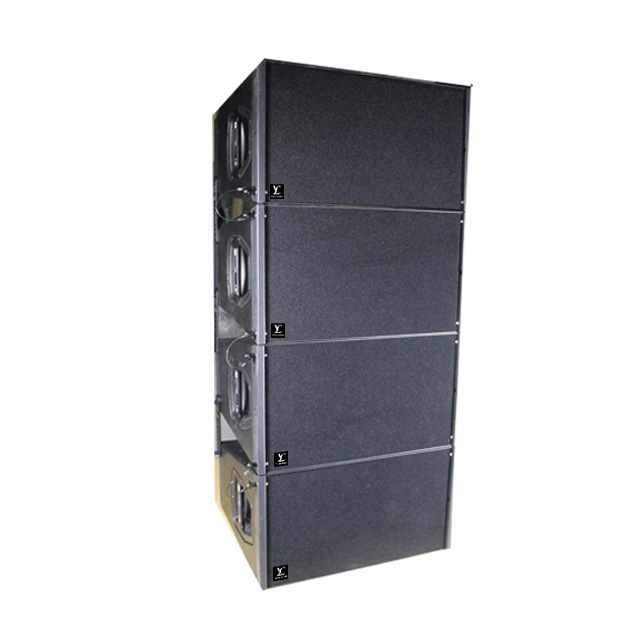

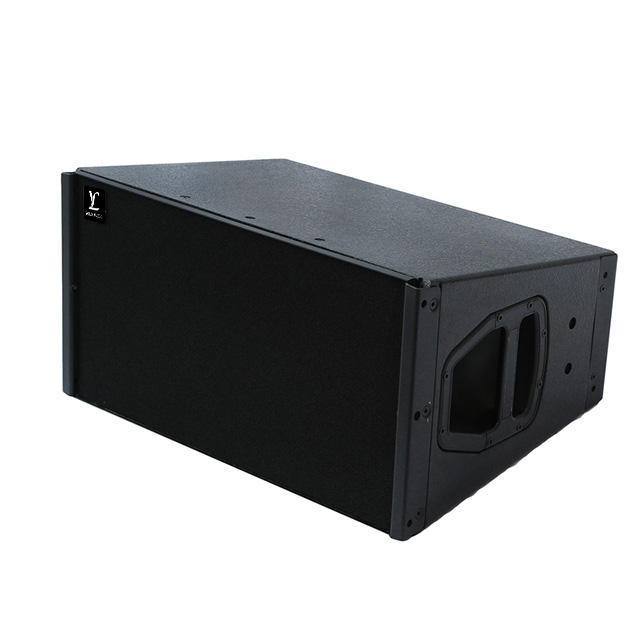

Q1 dual 10 inch 2 way line array
| Frequency response (-3dB) | 60Hz-17KHz |
| Components | LF2x10’’,Neodymium Drivers HF1x3’’, Neodymium Drivers |
| Nominal Impedance | 8ohms |
| System sensitivity (1w@1m) | 106dB SPL |
| Maximum SPL | 137dB |
| Power handling | 800W |
| Peak power | 1600W |
| HxV | 75°x15° |
| Connectors | 2xSpeakon| connectors (NL 4) |
| Enclosure material | 15mm plywood |
| Finish | Textured black paint |
| Grille | Black perforated steel |
| Dimensions (W x D x H) | 580x308x410 mm |
| Net Weight(Kg) | 22 |

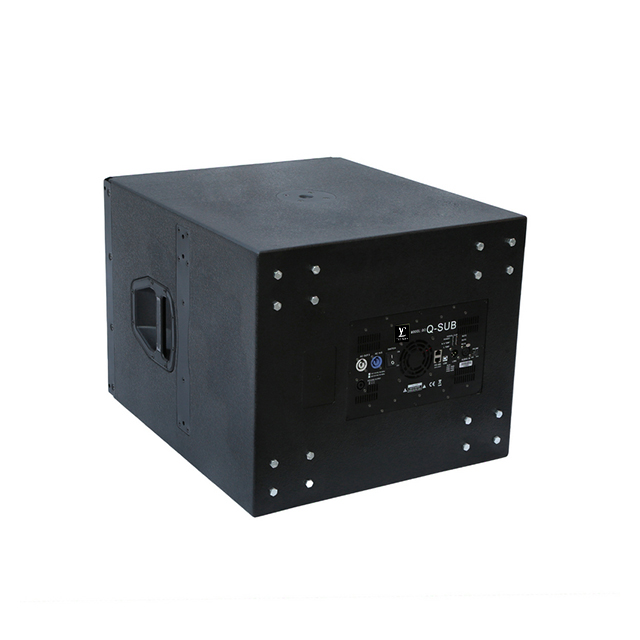

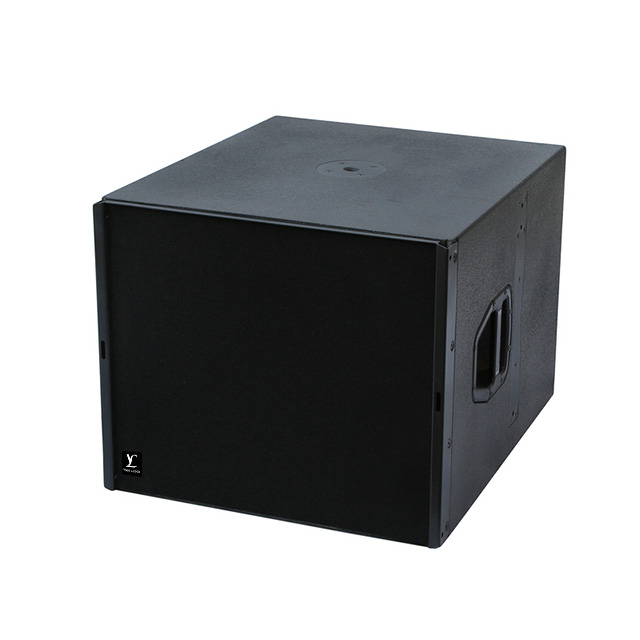

Q-SUB Single 18" Line Array Subwoofer
| Frequency response (-3dB) | 40Hz-200Hz |
| Components | LF1x18" woofer(Neodymium Drivers) |
| System sensitivity (1w@1m) | 106dB SPL |
| Maximum SPL | 133dB |
| Power handling | 800W |
| Peak power | 1600W |
| Nominal Impedance | 8ohms |
| Connectors | 2xSpeakon connectors (NL 4) |
| Enclosure | 15mm plywood, compact reflected low frequency |
| Finish | Textured black paint |
| Grille | Black perforated steel |
| Dimensions (W x D x H) | 580x493x668 mm |
| Net weight(Kg) | Active: 48 |
