Description

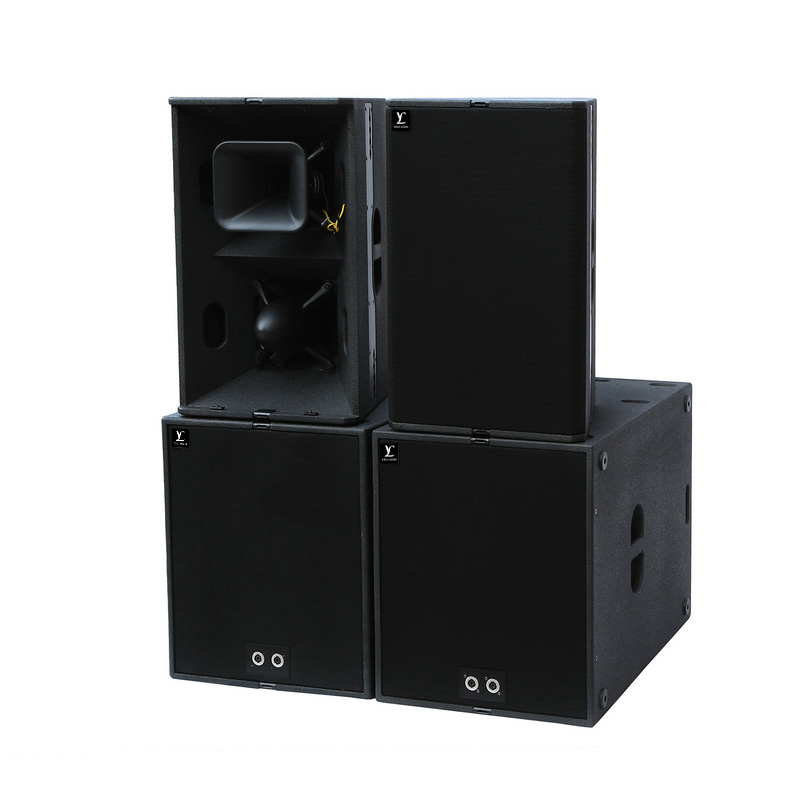

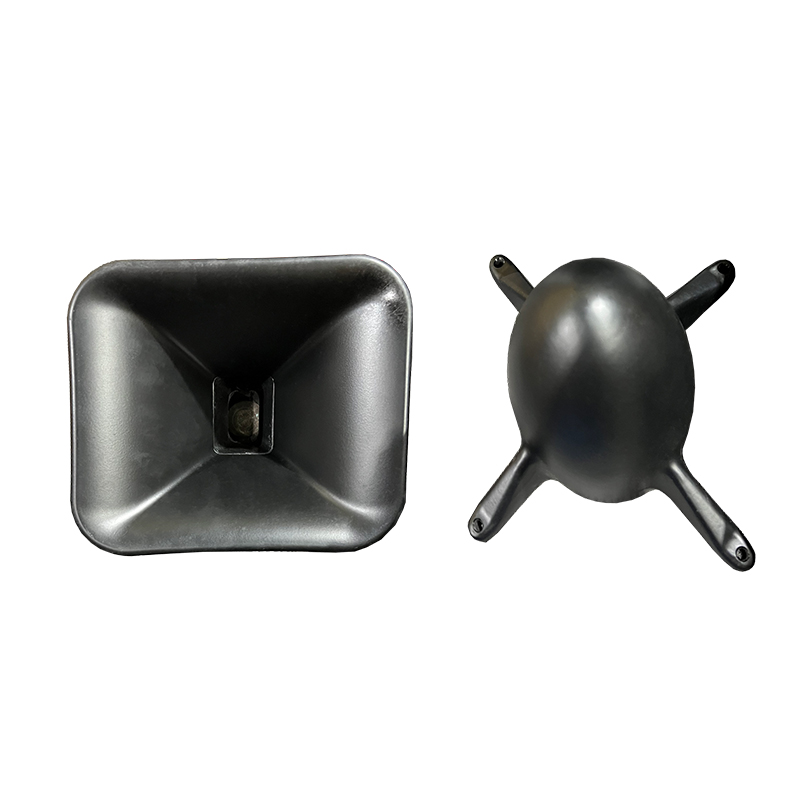

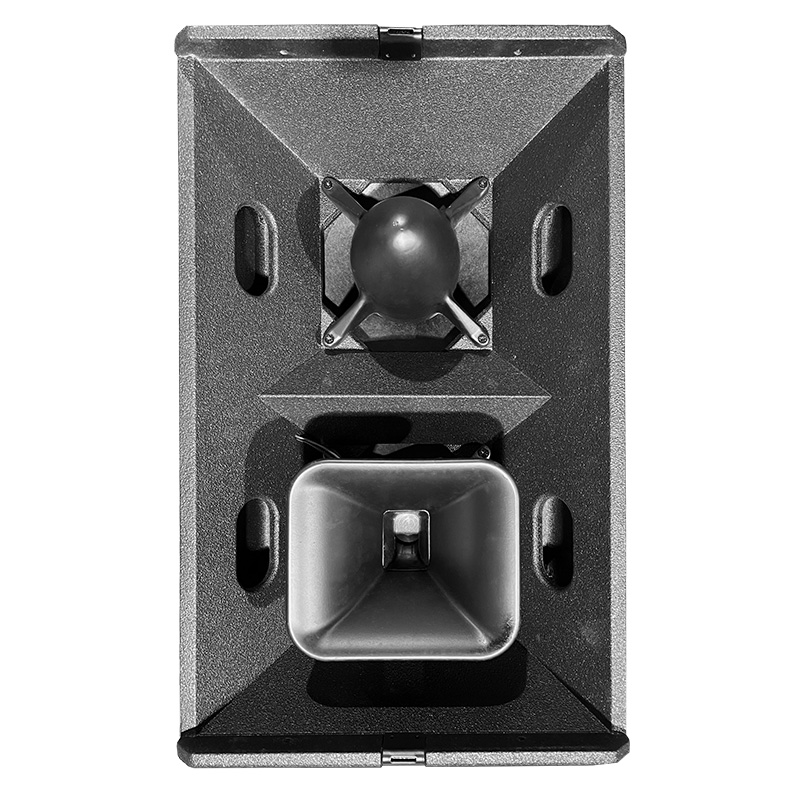

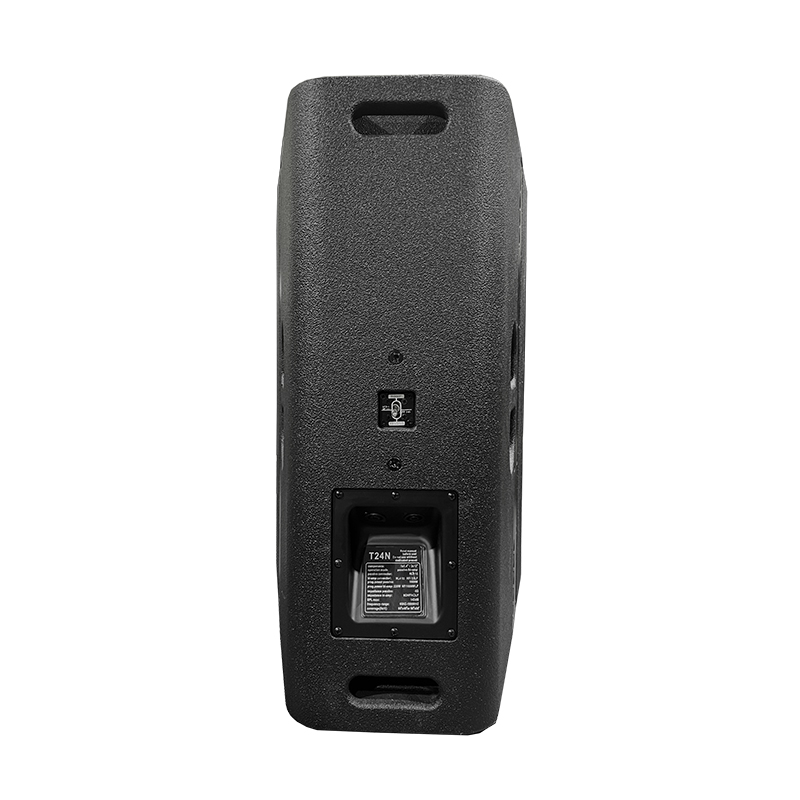

The T24N Loudspeaker is a benchmark in the live and installations market. The 3" speaker horn structure makes outstanding dynamic and 143 dB top sound pressure, and the front surface of the shell is only 70 × 40 cm. Specially developed 12 "neodymium chassis with a new housing structure makes the top of the speaker can be a full range below 70Hz, with 3" titanium film new 3 "high-end drive can accurately reproduce the silk-like high-precision and no deformation Even at the highest level. Besides, there is a bi-amp/passive switch at the rear panel for more convenient adjustment.
Features
1. Coming with 2x12" High efficiency Neodymium Drivers
2. With Excellent Speech Intelligibility and Musicality for sound quality
3. With High-strength birch plywood enclosure
4. Compact size and 33kg light weight
Specification
Model | T24N |
Drivers | HF: 1x 3” voice coil LF: 2x 12”neodymium driver |
Frequency Response (±3 dB) | 65 Hz - 18 kHz |
Sensitivity (1w/1m) | 107 dB (bi-amp LF), 112 dB (bi-amp HF) 110 dB (passive) |
Nominal Impedance | 4 Ohms (bi-amp LF), 8 Ohms (bi-amp HF) 4 Ohms (passive) |
Power capacity program / peak | 1400 / 2400 W (bi-amp LF), 220 / 400 W (bi-amp HF) 1400 / 2400 W (passive) |
SPL max / 1 m | 143dB |
Dimensions (W x D x H) | 706 x 440 x 440 mm |
Coverage (h x v) | 60° × 40° HORN |
Net weight | 33kg |
Input Connectors | NL4 1± |
