Y8&Y-SUB dual 8 inch 2 way line array audio system

								dual 8 inch line array, 2 way line array, live sound equipment, live sound speaker, outdoor concert sound system, concert sound system, audio system, line array audio system
SHARE:

Description

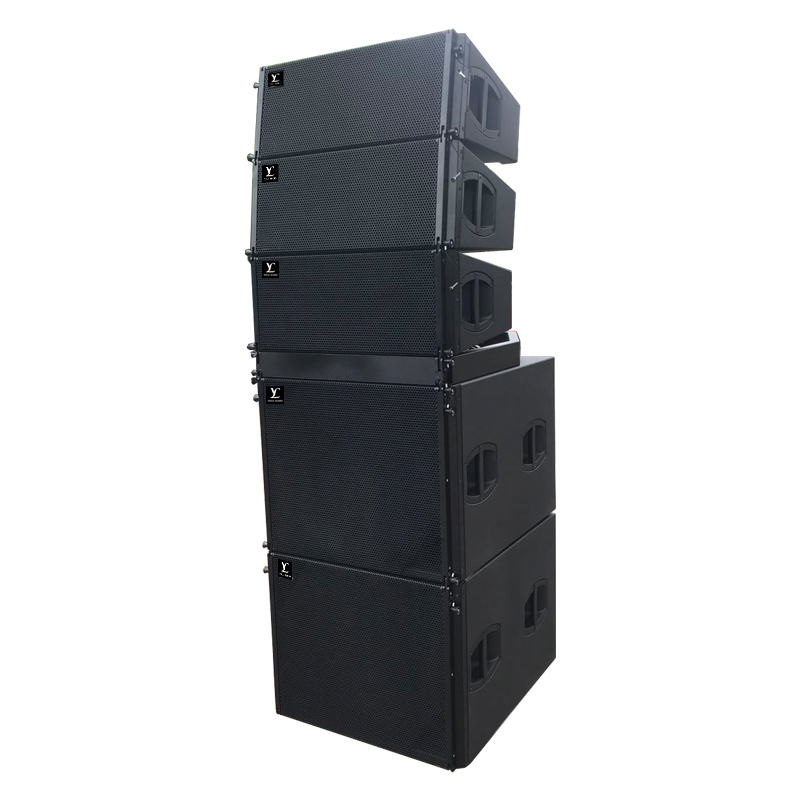

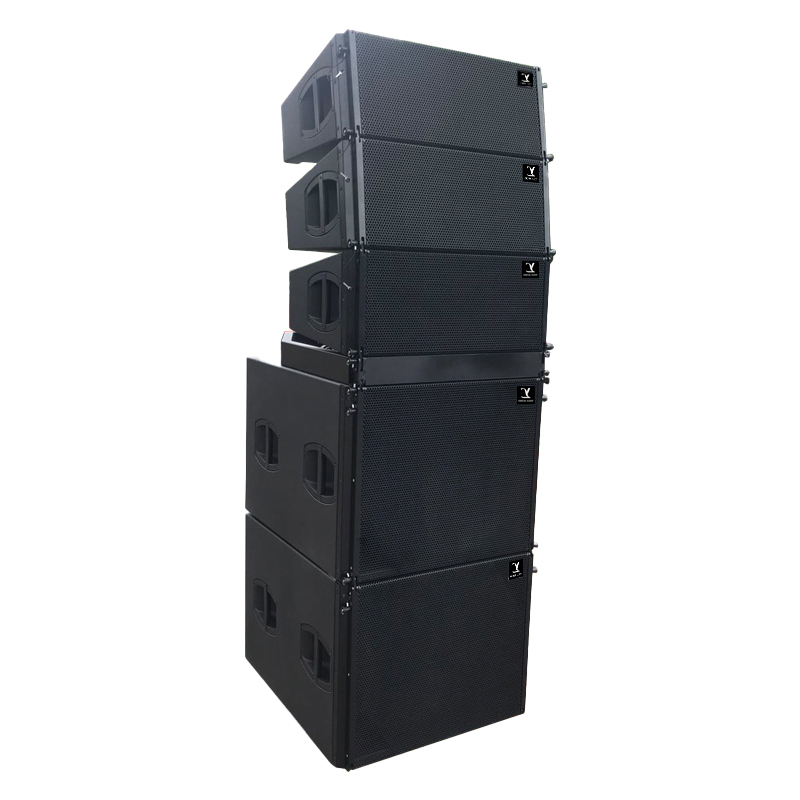

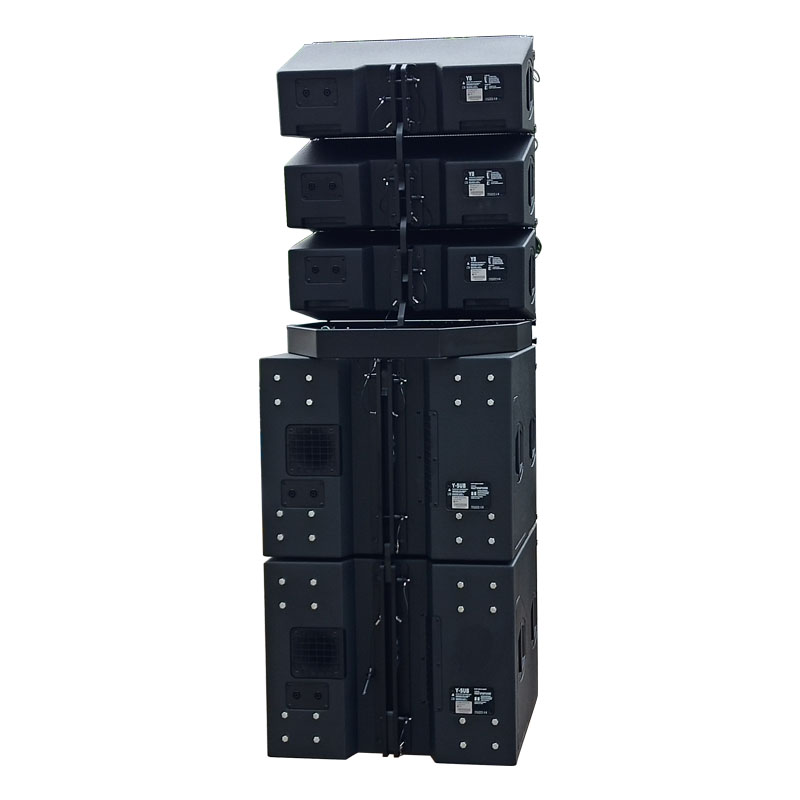

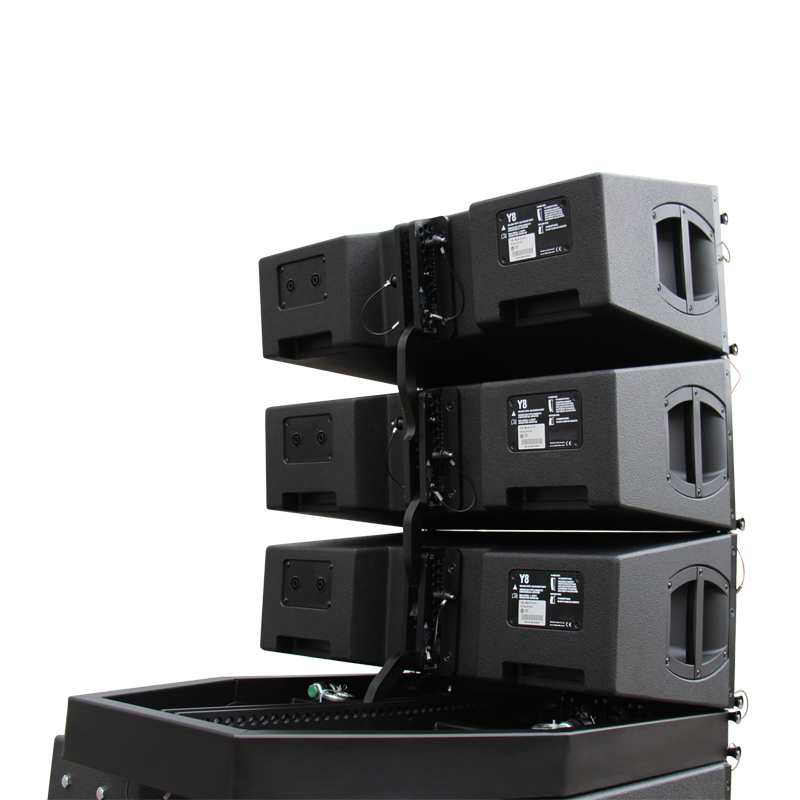

Y8 dual 8 inch 2 way line array and Y-SUB 12 inch+ 18 inch cardioid subwoofer combination offers a robust audio solution suitable for a range of applications, from live performances to small and mid-scale events and installations.



Y8 live sound speaker utilizes dual 8-inch woofers that provide deep, resonant bass while maintaining clear midrange frequencies. Incorporating a high-frequency driver, the 2 way audio system delivers crisp, detailed highs, enhancing overall sound quality.

Y-SUB live sound equipment is a cardioid subwoofer cabinet design: a 18 inch neodymium woofer is installed in the front, the 12 inch neodymium subwoofer installed in the rear, produce deep, impactful bass that extends well into the sub-bass frequencies, providing a solid foundation for any audio mix.



Application and Benefits



The combination of the dual 8 inch concert sound system and 12 inch+18 inch live sound subwoofer speaker is perfect for a variety of audio setups:



Live Events:

This setup provides clear and powerful sound across large areas, making it ideal for concerts, festivals, and live performances.

Theater and Cinemas: The clarity of the line array and the depth of the subwoofer enhance the audio experience in theatrical and cinematic applications.

Installations: For permanent installations in large venues, this system offers flexibility and high-quality performance, adapting to various acoustic environments.



Features

Dual 8 inch 2 way top line array speaker

12inch+18 inch audio subwoofer

Durable birch plywood cabinet with waterproof finish

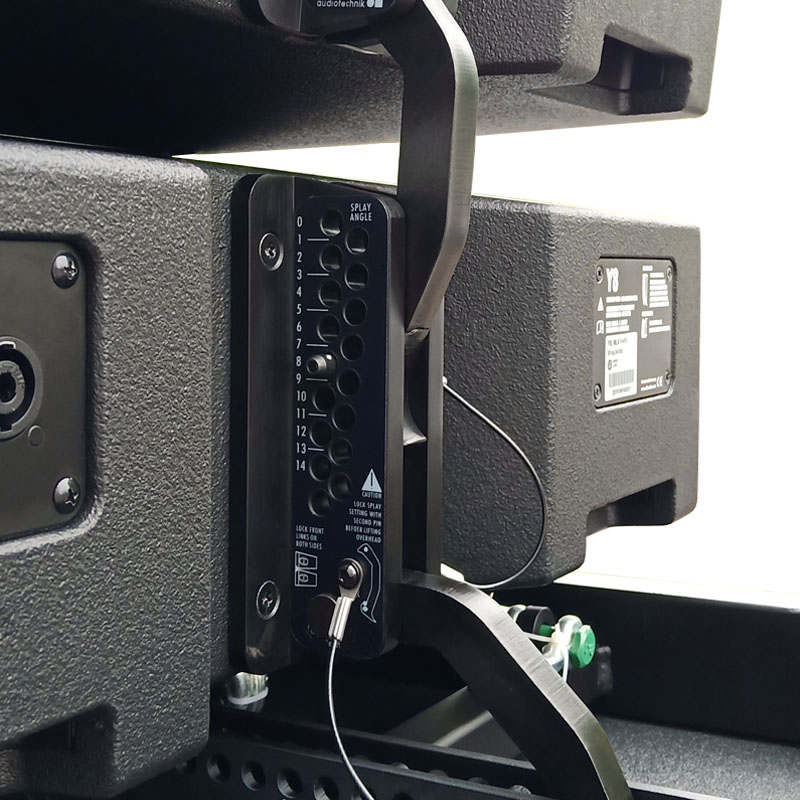

Easy and convenient rigging hardware

Lightweight and compact



Specification

Y8 2-way passive line array loudspeaker

Nominal impedance

8 Ω

Power handling capacity (RMS/peak 10ms)

400/1600 W

Nominal dispersion angle (horizontal)

80°

Splay angle settings

0° - 14° (1° increment)

Components

2 x 8" driver with neodymium magnet
1.4" exit compression driver

Connections

2 x NL4

Dimensions (H x W x D)

257 x 630 x 375 mm
10 x 24.8 x 14.8"

Weight

20 kg
44 lb



Y-SUB  flyable cardioid subwoofer



Nominal impedance

8 Ω

Power handling capacity (RMS/peak 10ms)

600/2400 W

Splay angle settings

0° - 2.5°

Components

1 x 18" driver with neodymium magnet

1 x 12" driver with neodymium magnet

Connections

2 x NL4

Dimensions (H x W x D)

500 x 630 x 700 / 804 mm

19.7 x 24.8 x 27.6 / 31.6"

Weight

52kg
115 lb
