Q-SUB Single 18" Pro Audio PA Subwoofer Box Design

								1. Low compression bass-reflex loudspeaker fitted with a high excursion 18” driver
2. Compact plywood cabinet with an impact resistant paint finish
3. Two Powerful handle and four heavy duty wheels
4. A rigid metal grill covered with replaceable acoustica

Add To Basket

SHARE:

Product Description

Description

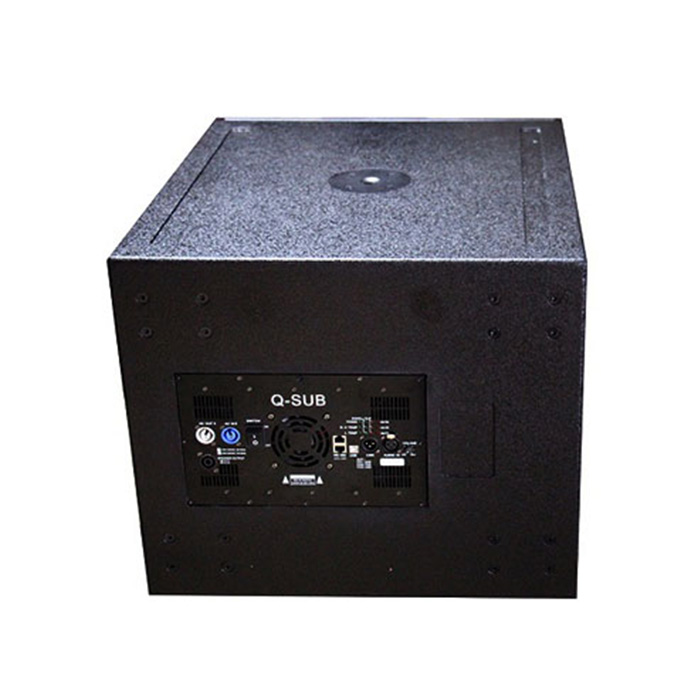

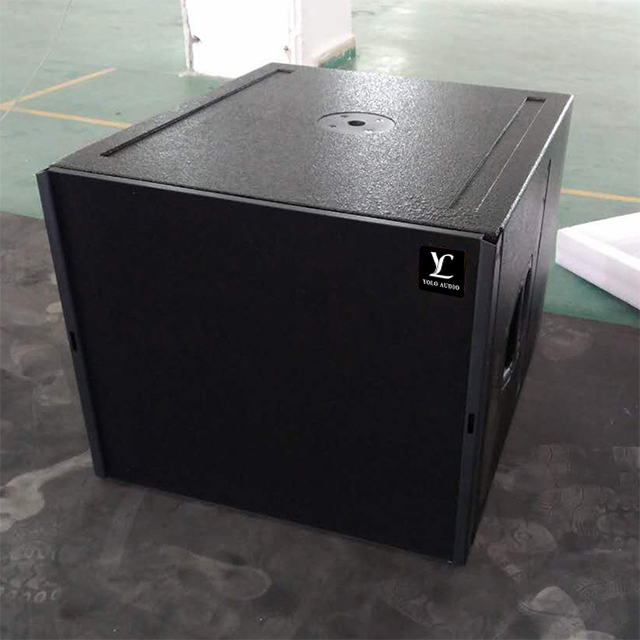

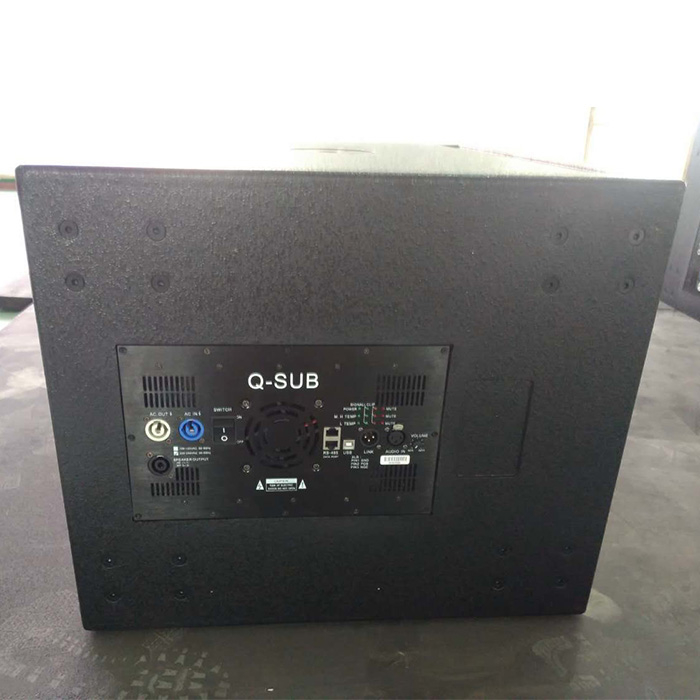

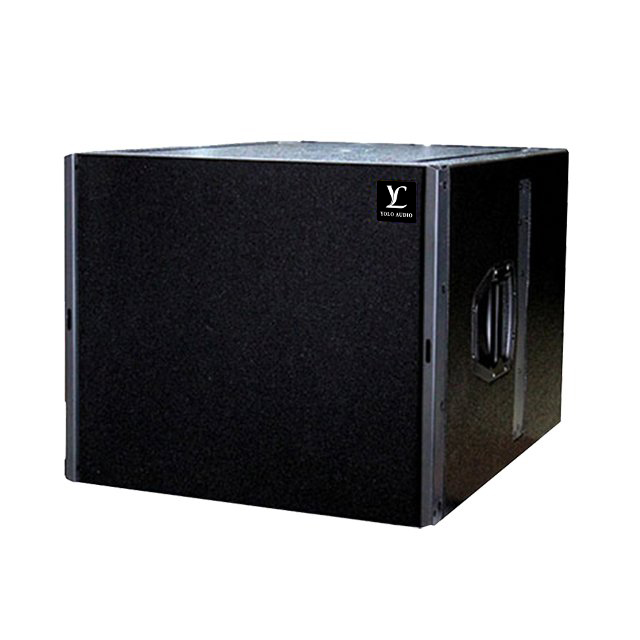

The Q-SUB is an actively driven low compression bass-reflex loudspeaker fitted with a high excursion 18" driver.

The Q-SUB cabinet is constructed from marine plywood with an impact resistant paint finish, a pair of handles, four heavy duty wheels and an M20 threaded flange in the top panel to accept a loudspeaker stand. The front of the loudspeaker cabinet is protected by a rigid metal grill covered with replaceable acoustically transparent foam.

Features

Low compression bass-reflex loudspeaker fitted with a high excursion 18” driver
Compact plywood cabinet with an impact resistant paint finish
Two Powerful handle and four heavy duty wheels
A rigid metal grill covered with replaceable acoustically transparent foam
Fittings for securing an optional transport lid are also provided

Specification

Model	Q-SUB
Frequency response (-3dB)	40Hz-200Hz
Components	LF1x18" woofer(Neodymium Drivers)
System sensitivity (1w@1m)	106dB SPL
Maximum SPL	133dB
Power handling	800W
Peak power	1600W
Nominal Impedance	8ohms
Connectors	2xSpeakon connectors (NL 4)
Enclosure	15mm plywood, compact reflected low frequency
Finish	Textured black paint
Grille	Black perforated steel
Dimensions (W x D x H)	580x493x668 mm
Net weight(Kg)	Passive: 42 ; Active: 48
