Description

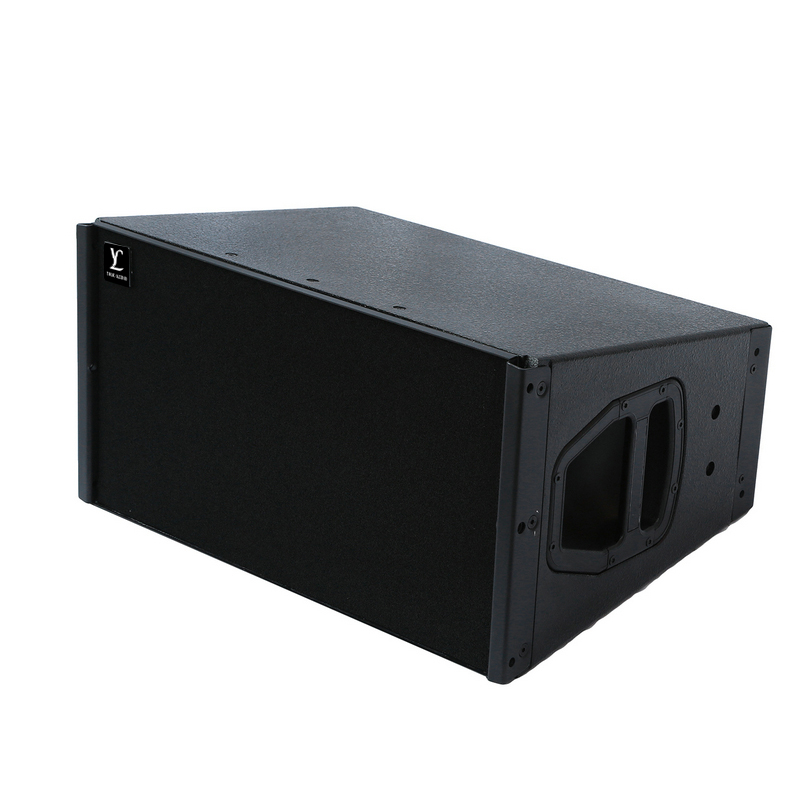

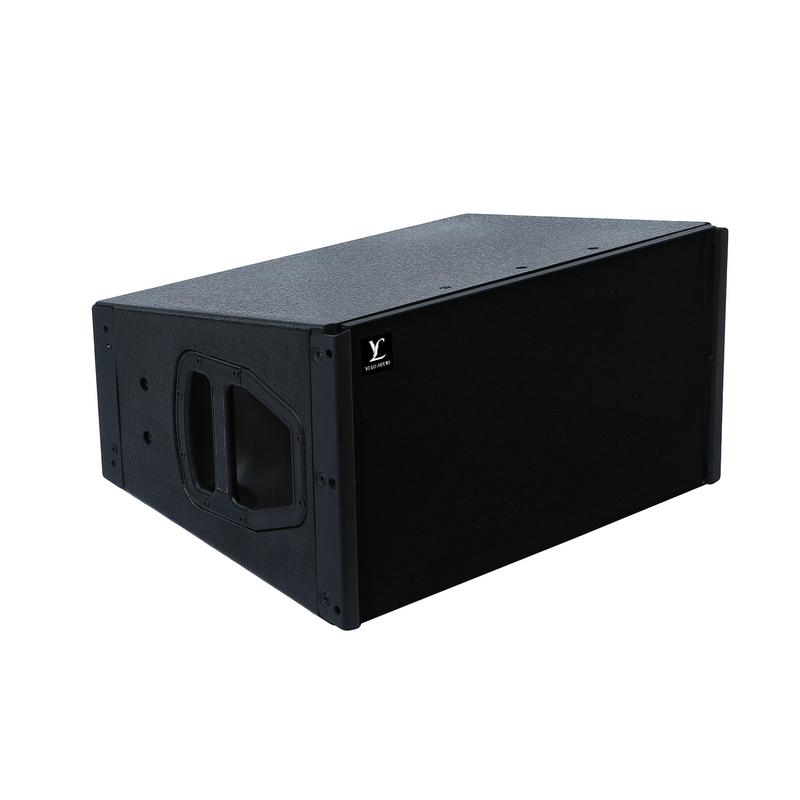

Q1 is a dual 10inch two-way line array system. This system adopt neodymium magent compression driver with 75mm voice coil which is durable and working high efficiency. The Q1 delivery very clear vocal voice. 4 units Q1 working together with 1 unit Q-sub to be a full sound system. The perfect dispersion pattern allows the Q1 to construct vertical columns which produce a curved coherent wave front. This system is suitable for small size live performance, live speech and some high class conference room.
Features
1. All transducer with neodymium magnet
2. Smooth frequency and phase response
3. High-strength plywood enclosure
4. Fast installation rigging system
5. Extremly high SPL and Volume ratio
6. More choice for vertical coverage angle
Application
1. Nightclubs reinforcement
2. Bars/High-class KTV rooms speaker system
3. High-class hotels/ Theaters speaker box
4. Electronic classrooms /Multi-functional halls
5. Permanent sound system installation
Specification
| Model | Q1 |
| Frequency response (-3dB) | 60Hz-17KHz |
| Components | LF: 2x10’’Neodymium Drivers; HF: 1x3’’Neodymium Driver |
| Nominal Impedance | 8ohms |
| System sensitivity (1w@1m) | 106dB SPL |
| Maximum SPL | 137dB |
| Power handling | 800W |
| Peak power | 1600W |
| HxV | 75°x15° |
| Connectors | 2 NL4 Speakon connectors |

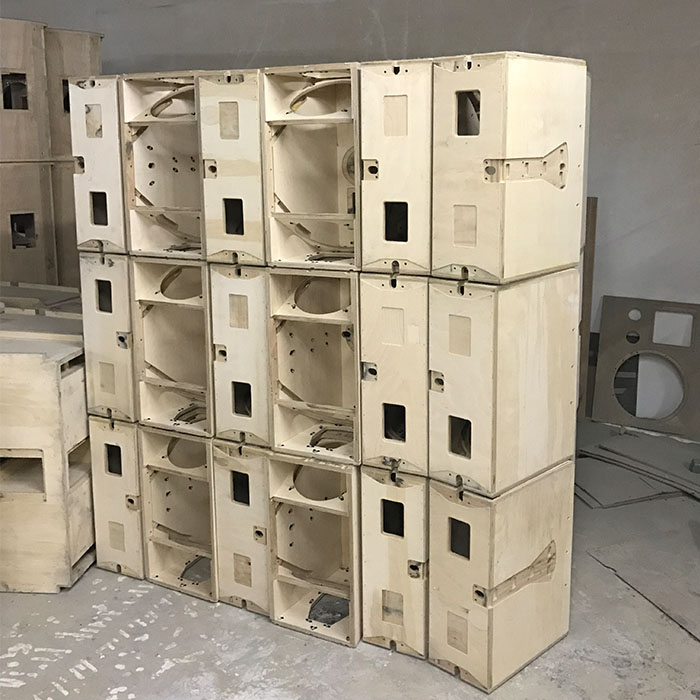

| Enclosure material | 15mm plywood |
| Finish | Textured black paint |
| Grille | Black perforated steel |
| Dimensions (W x D x H) | 580x308x410 mm |
| Net Weight(Kg) | 22 |
