Overview:

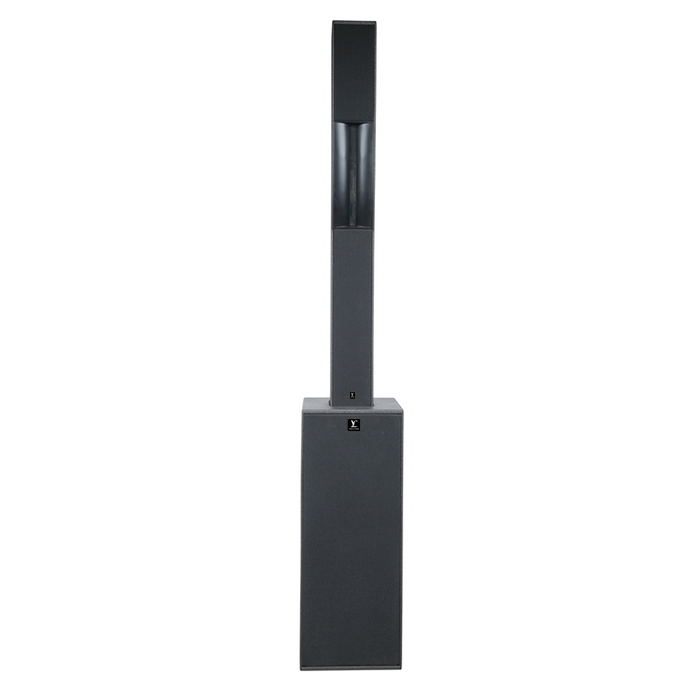

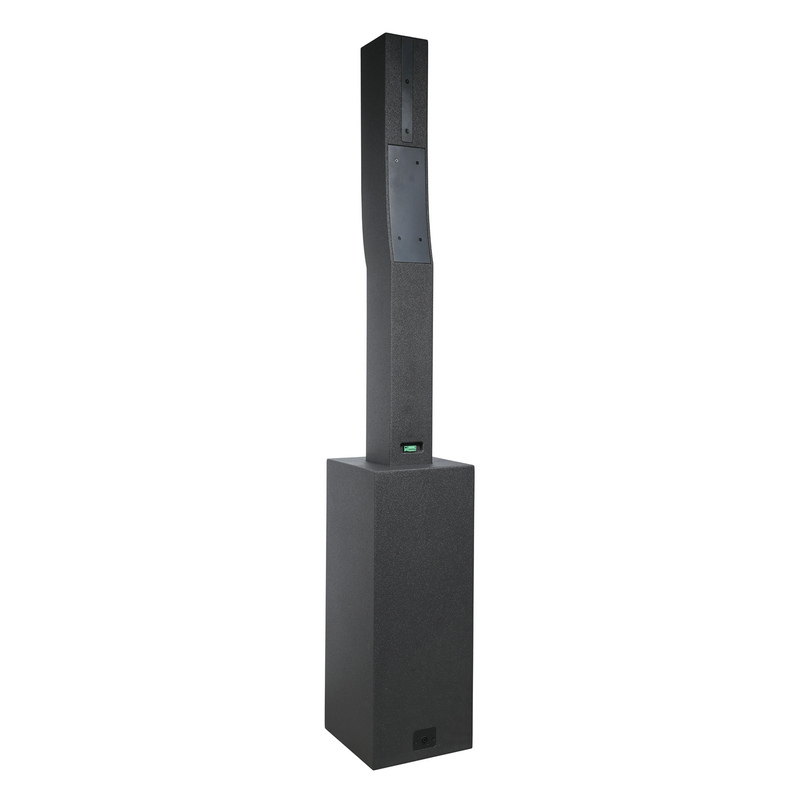

SYVA is a column speaker system is designed for midrange pro audio reinforcement and residential applications that require high fidelity and SPL.

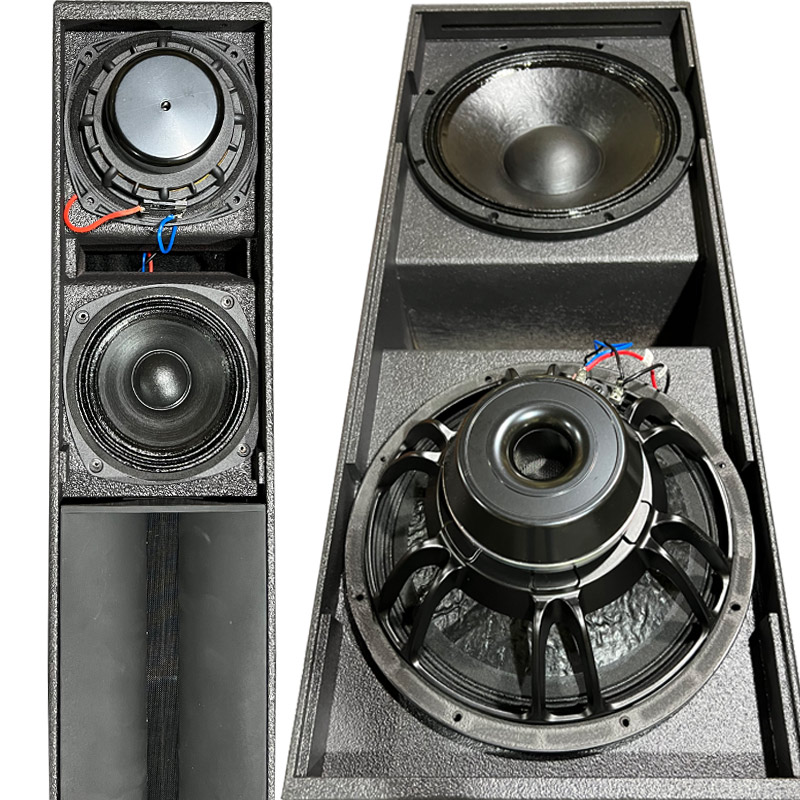

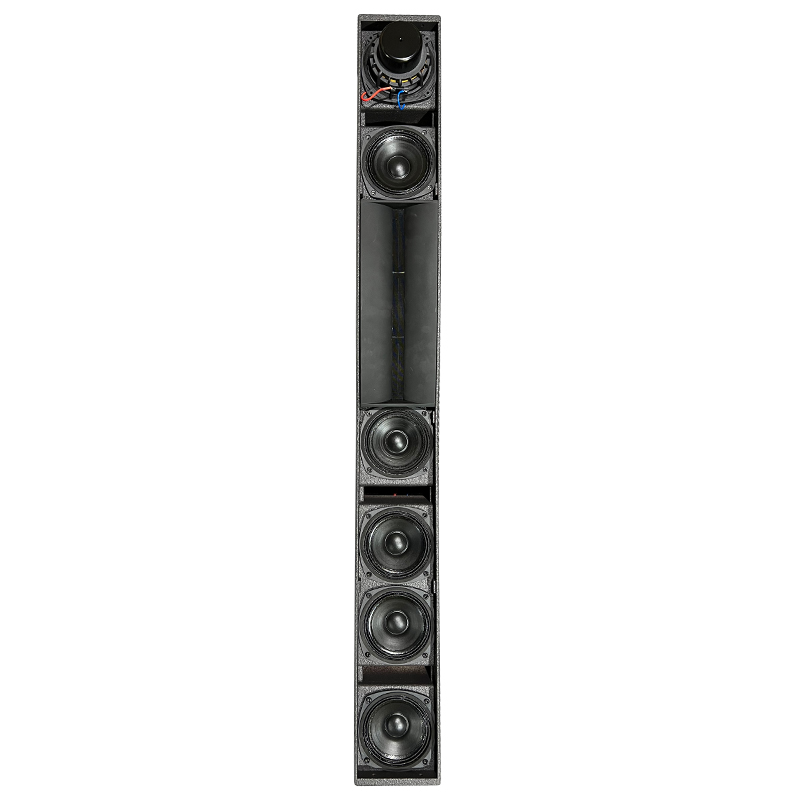

The compact column speaker box equipped with 6 units 5 inch midrange speaker drivers and 3 units 1.5 inch compression drivers.

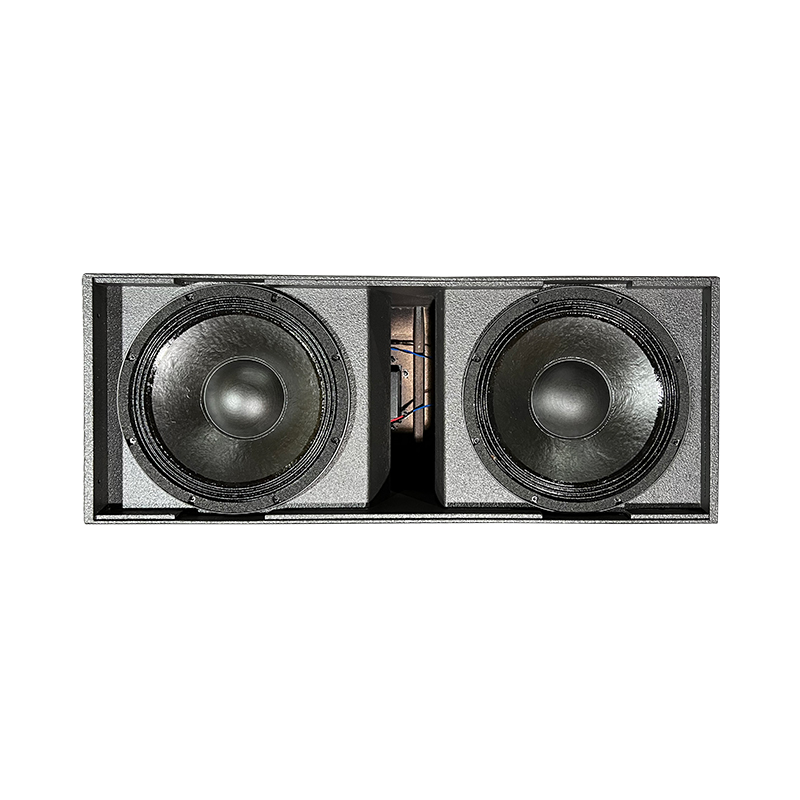

SYVA LOW subwoofer cabinet consists of two unit 12 inch speaker drivers provide low-frequency profile and expansion.

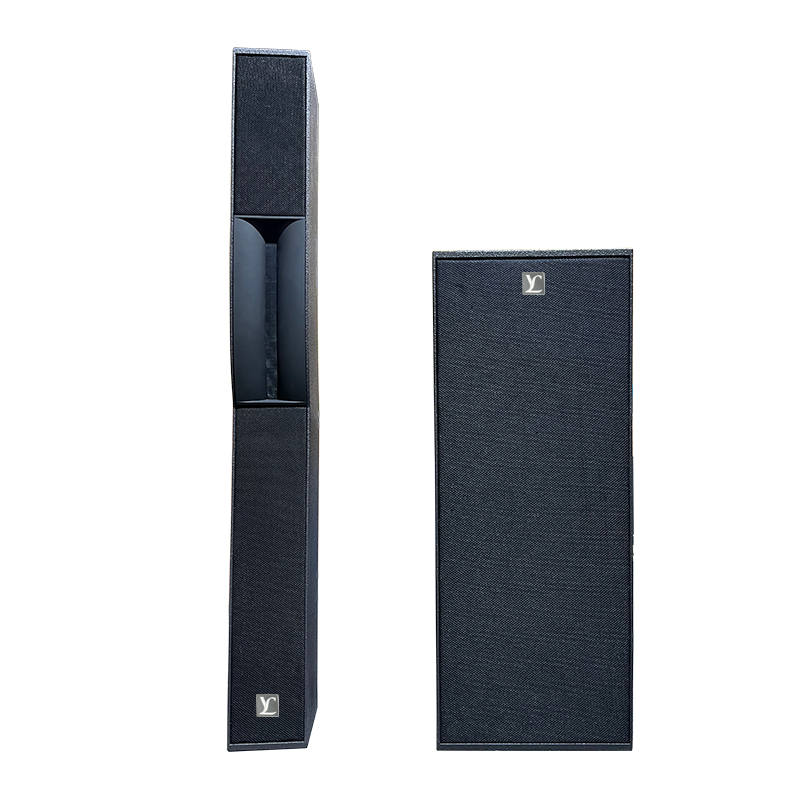

Column array speakers box and subwoofer cabinet combine the extraordinary acoustic characteristic of birch plywood. Its slimness elegance makes integration easy. Dark grey brown and Black and white color allows it to blend into any architecture.
Features:
Compact and lightweight column speaker system
First grade birch plywood
Polyurea paint
Application:
Auditorium
Home cinema
Trade show
Corporate event
House of worship
Specification:
SYVA column array speakers
Usable bandwidth (-10dB) | 87 Hz - 20 kHz |
Nominal directivity (-6dB) | Horizontal: 140° (>1 kHz) |
Vertical: +5/-21° in J shape (>1 kHz) | |
Maximum SPL1 | 137 dB |
RMS handling capacity | 600W |
MF: 6 × 5’’ HF: 3 × 1.5’’, compression driver | |
Nominal impedance: 8 ohms | |
Weight (net) | 21 kg / 46 lb |
Connectors | Phoenix terminals |
Material | birch plywood and polyurea paint |
SYVA LOW dual 12 inch subwoofer
Usable bandwidth (-10dB) | 40 Hz |
Maximum SPL1 | 1137 dB |
RMS handling capacity | 1200W |
LF: 2 × 12" | |
Nominal impedance: 4 ohms | |
Weight (net) | 29 kg / 64 lb |
Connectors | 1x NL4 SPEAKON |
Material | birch plywood and polyurea paint |
