Description

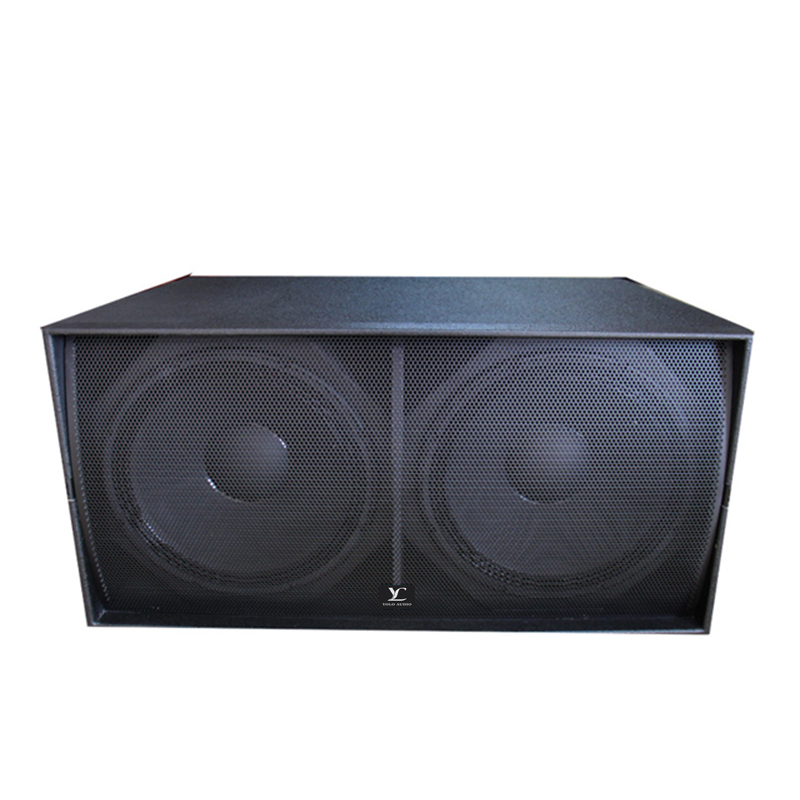

The WS218X is a high performance sub-bass system designed for use with large scale Wavefront and Blackline systems, in both touring and install applications. It features twin, 1000 watt 18" (460mm) drive units with magnet structure and suspension engineered for maximum linear excursion.
The plywood cabinet is fitted with six pocket handles and four 4" (100mm) castors for easy deployment. It features large area porting to reduce air noise.
WS218X subwoofers are designed to be powered by power amplifiers.
Features
1. Dual, direct radiating long excursion 18" (460mm) drivers
2. High temperature 4" (100mm) voice coils
3. High power – 138dB continuous, 144dB peak
4. Fitted with handles and castors
Application
1. Medium/large scale touring sytems
2. Theatre sound systems
3. Club sound reinforcement
4. Special effects sub-bass
Specification
Long-term SPL | 138dB |
Maximum SPL | 144 dB |
Nominal Impedance | 4ohms |
Power rated(rms) | 2400 watts |
Peak Power handling | 8000 watts |
Nominal Dispersion | N/A |
Dimensions (H x W x D) | 1066 mm x 581 mm x 780 mm |
Enclosure Material | 18mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed |
Net weight | 89kg |
Low Frequency Driver | 2×18 inch |
Input Connectors | Neutrik NL4MPX2
|
