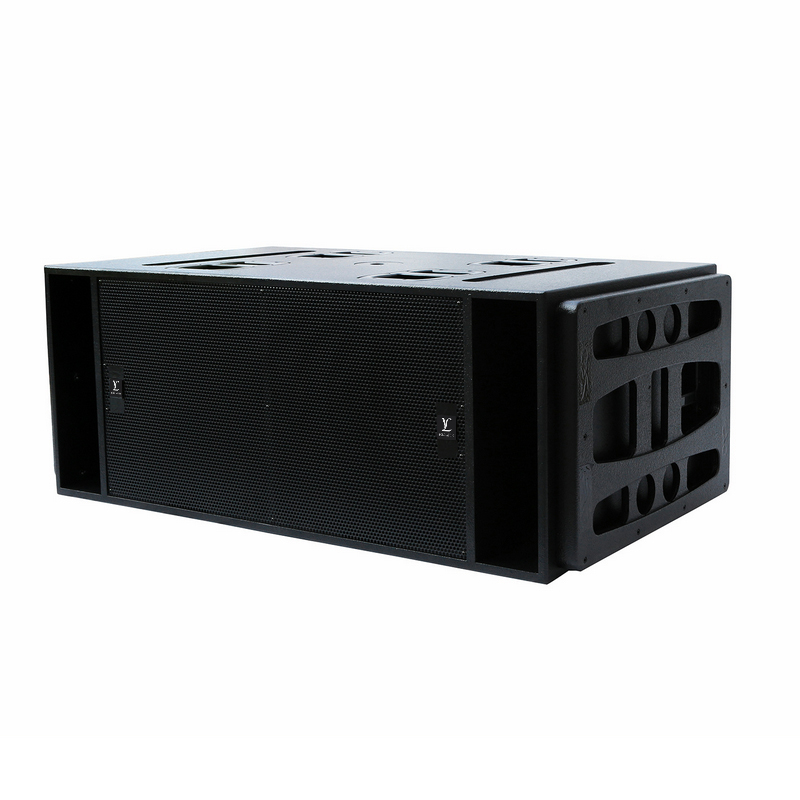

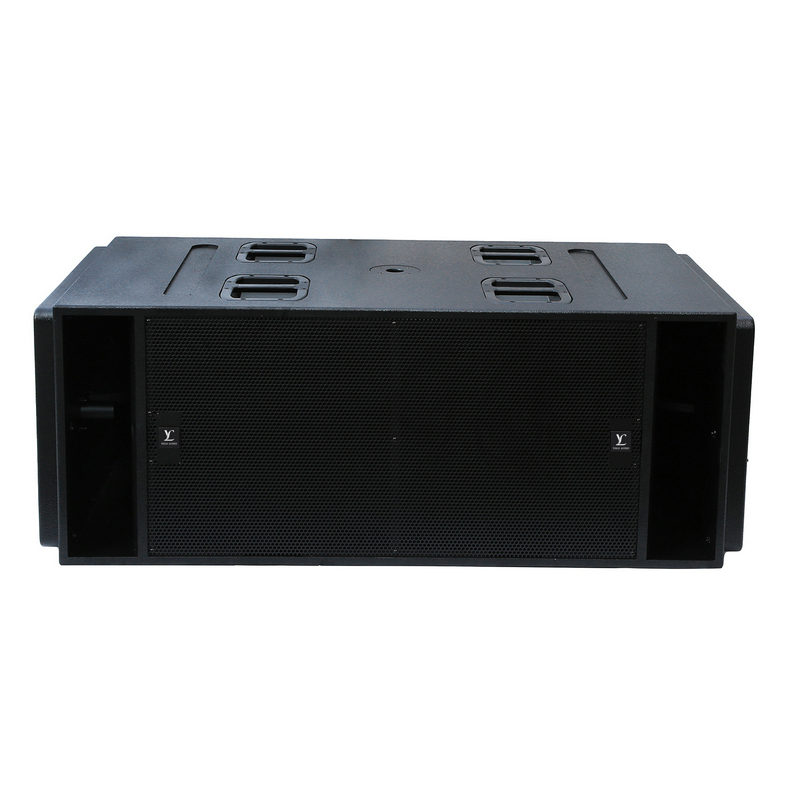

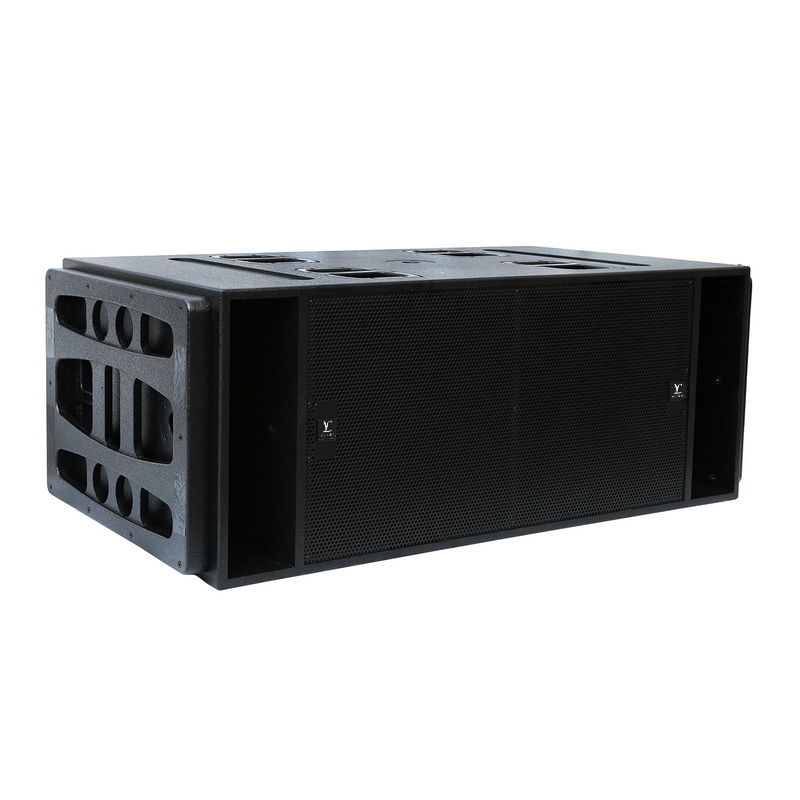

RS18 Sub-Bass Loudspeaker System With Two 18" Long Excursion Drivers

								1. Low profile, high output subwoofer;
2. Two 18” long excursion drivers inside;
3. 18mm birch plywood cabinet enclosure;
4. Configurable directivity pattern;
5. Cardioid pattern reduces rear levels by minimising rear/side wall reflections

Add To Basket

SHARE:

Product Description

Description

Sanway RS18 uses two 18” long excursion drivers in a birch plywood cabinet to extend Low profile, high output system. The new technology permitting acoustic distance from rear to front sections to always increase as frequency decreases. With frequency response down to 30Hz, sensitivity 105dB, the rear and front portions are effectively summed over the entire subwoofer bandwidth, allowing an average gain of 5 dB from the front direction and being canceled at the rear. The RS18 is versatile for installations and touring requirements where large format sub-bass cabinets are required.

Key Feature

1. High power subwoofer bass;
2. With 2 x 18" configuration;
3. RMS 2 x 1750 Watts at 2 x 8Ω;
4. Rectangular enclosure constructed of 18mm birch plywood;
5. Configurable directivity pattern

Specification

Model	RS18
Components	2 x 18"
Frequency Response @ -3db	30Hz–100Hz
Usable Range @ -6db	29Hz–250Hz
Sensitivity 1W @ 1m	105dB SPL
Peak SPL @ 1m	143–146dB Peak
Shape	Rectangular
Crossover Frequency	From 75Hz to 100Hz
Nominal Impedance	2 x 8Ω
Power rated	2x1750W
Construction	Birch plywood
Connectors	4 x NL4MP SPEAKON
Net Weight	90Kg
Dimension	520 x 1268 x 732mm
