Overview:

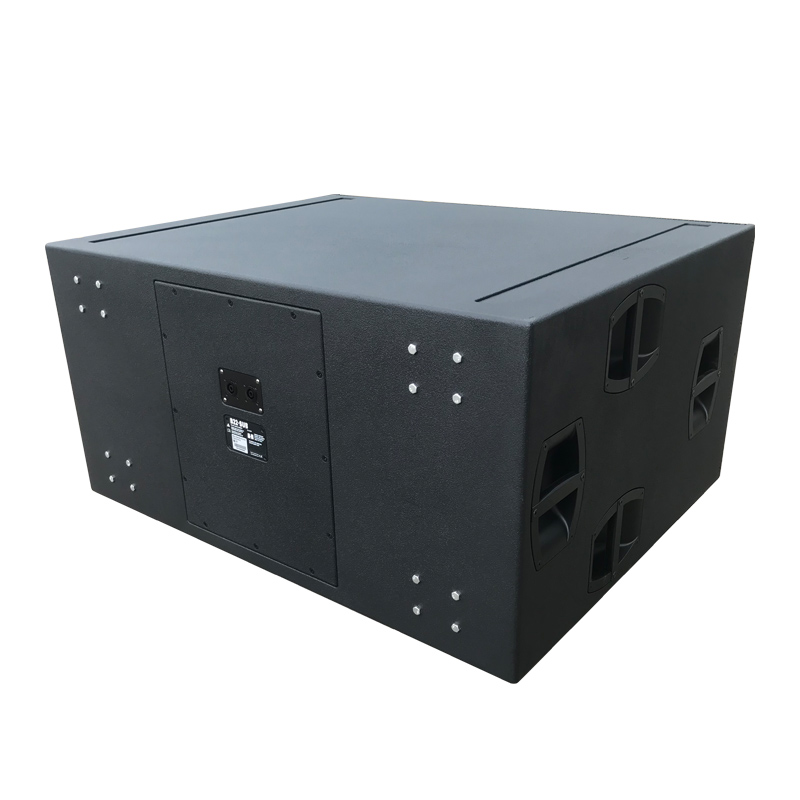

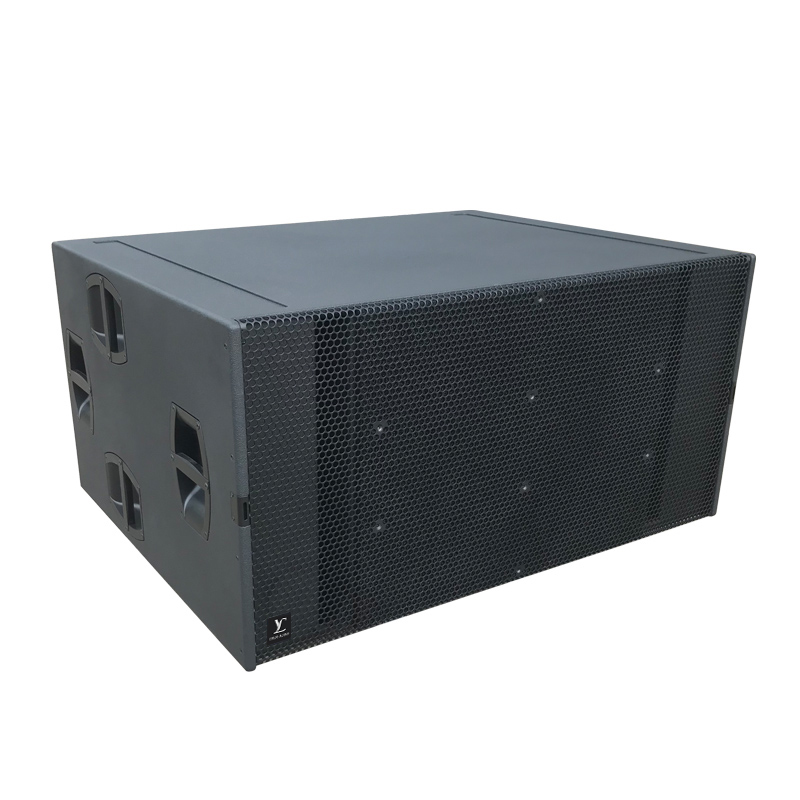

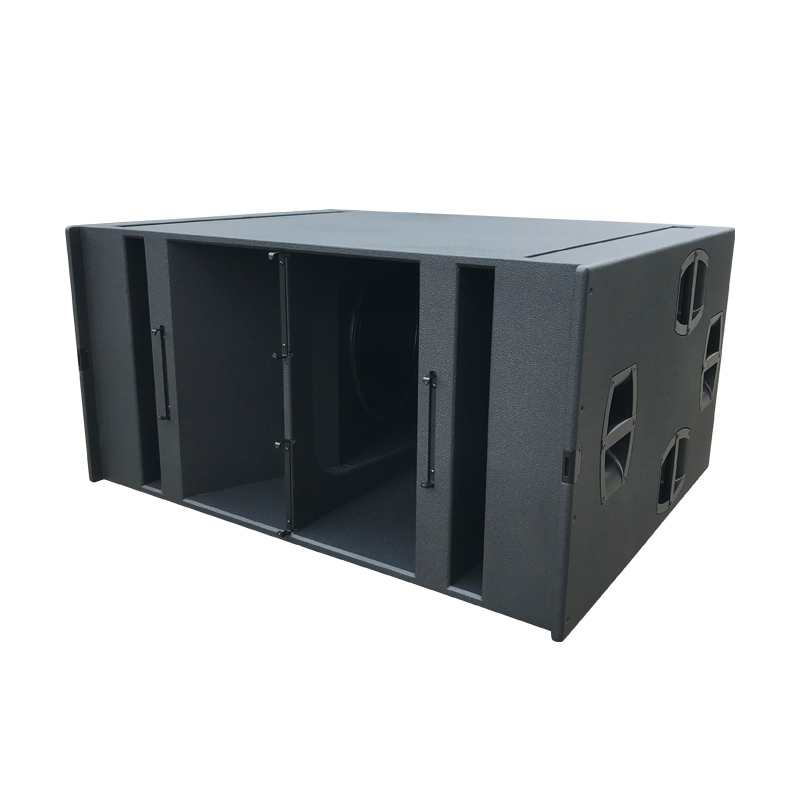

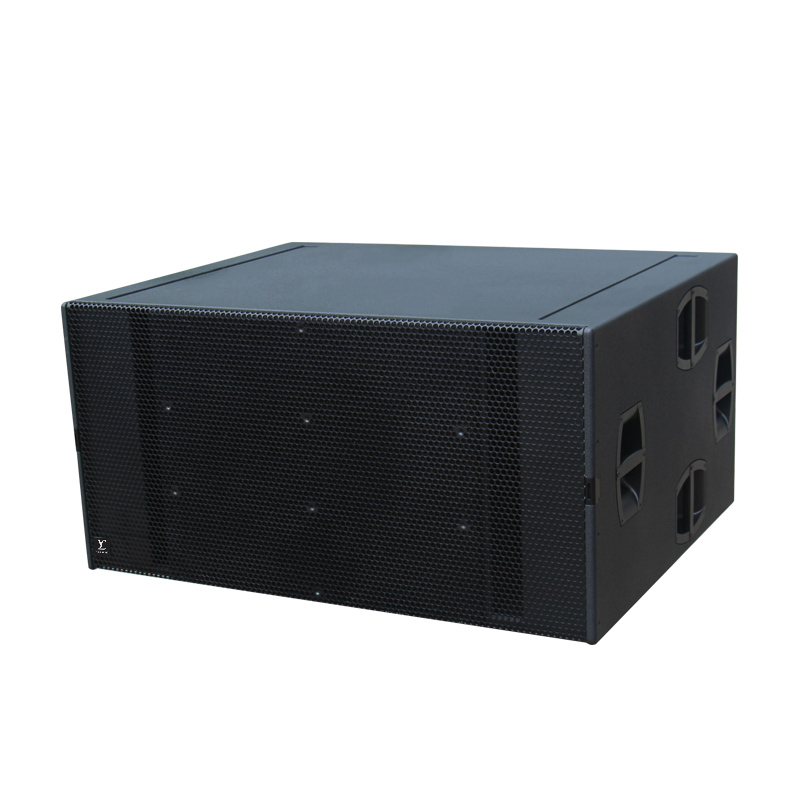

B22 subwoofer designed for large format sound reinforcement application, equipping with two long excursion 18" neodymium woofers mounted into bandpass horn box design.
The subwoofer cabinet is made from Russian birch plywood with Spray polyured waterproofing finishing. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam
Features:

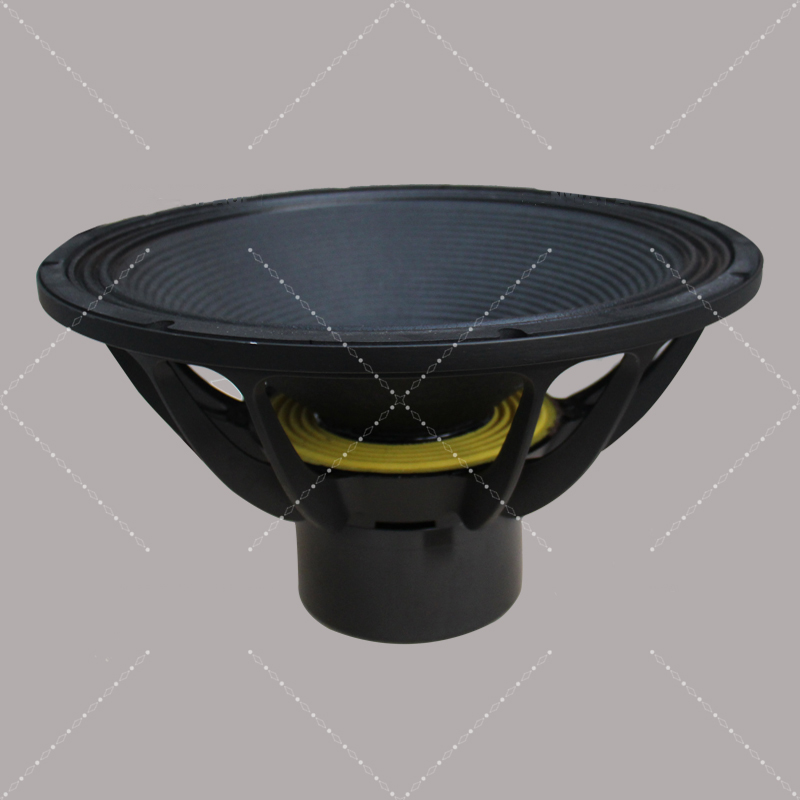

2x18 inch long excursion neodymium woofer
Russian Birch plywood
Spray Polyured waterproofing finishing
Specification:
B22 High performance subwoofer intended for ground stacked applications
Nominal impedance | 4 Ω |
Power handling capacity (RMS/peak 10ms) | 2000/8000 W |
Components | 2 x 18" driver with neodymium magnet |
Connections | 2 x NL4 |
Dimensions (H x W x D) | 585 x 1160 x 920 / 1046 mm 23 x 45.7 x 36.2 / 41.2” |
Weight | 106 kg (234 lb) |
