Overview

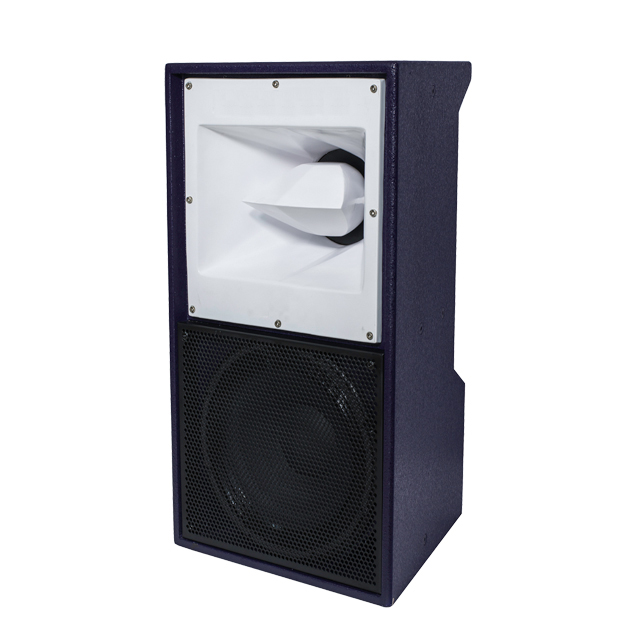

R1 dj speaker is a two-unit two-way full-range professional speaker. It consists of a 12-inch Cloth edge low-frequency unit and a 5 inch mid-frequency compression driver. The full range speaker has large dynamics, high sensitivity, clear low and mid-range, and good low-frequency dynamics. DJ speaker box is made of laminated board with a wooden wedge structure, and the surface polyurethane paint has strong wear resistance.
Pa audio sound speaker Features
A 5 inch mid-frequency compression driver.
A 12 inch low-frequency driver
Large dynamics, high sensitivity, clear low- and mid-frequency clarity, and good low-frequency dynamics.
With M10 and M8 hanging points, which can be easily and quickly installed and hung in different environments.
12 inch speaker Application
Fill and spot coverage where space is limited
Theatres and churches requiring minimal visual intrusion
Distributed systems in bars and restaurants
Museum and gallery installations
Immersive sound spaces
Portable corporate AV events
Single 12 inch DJ full range pa audio sound speaker Specification
| Model | R1 |
| Frequency Response( ±3dB) | 65Hz-15KHz |
| Sensitivity(1w/1m) | LF:102dB |
| HF:112dB | |

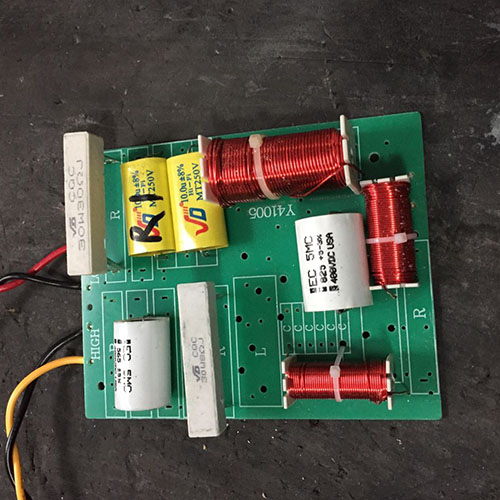

| Crossover Piont | 530Hz |
| Nominal Impedance | LF:8ohms |
| HF:12ohms | |
| Power rated | LF:350 watts |
| HF:75 watts | |
| Nominal dispersion | 40 Hx25 V degree |
| Dimensions(H ×W ×D) | 700X395X382mm |
| Enclosure material | 15mm plywood |
| Surface finished | Silver + Violet color |
| Net weight | 19kg |
| Low frequency driver | 1x12 inch horn loaded |
| High frequency driver | 1x5 inch horn loaded |

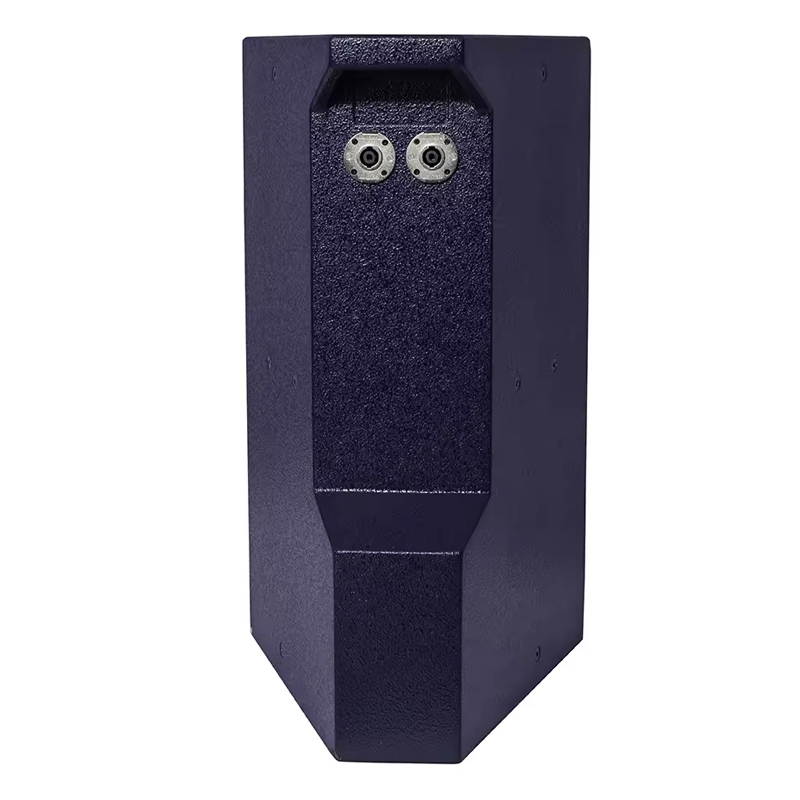

| Input Connectors | Neutrik NL4x2 |
