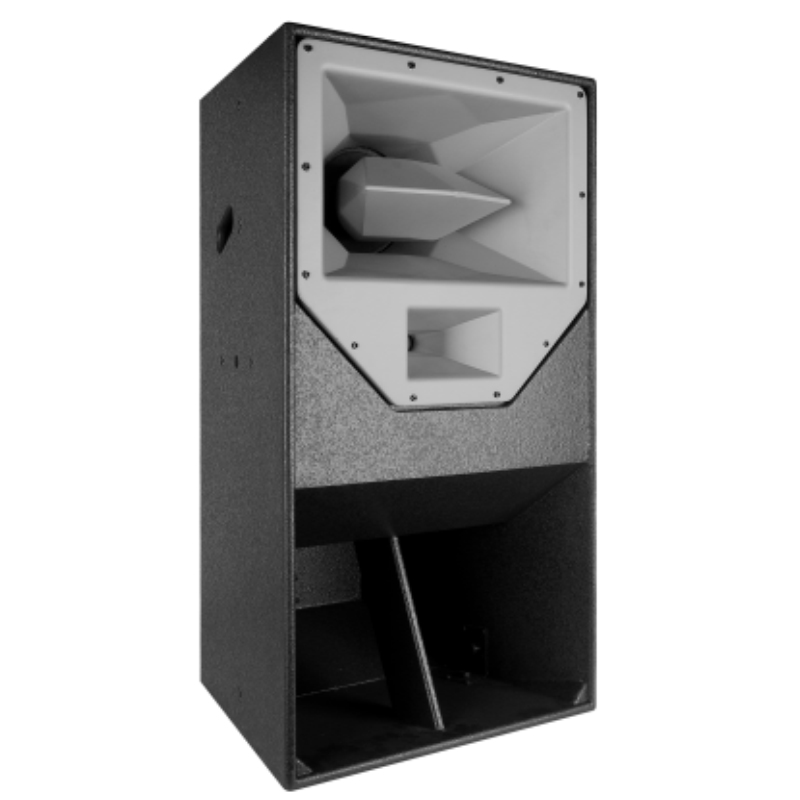

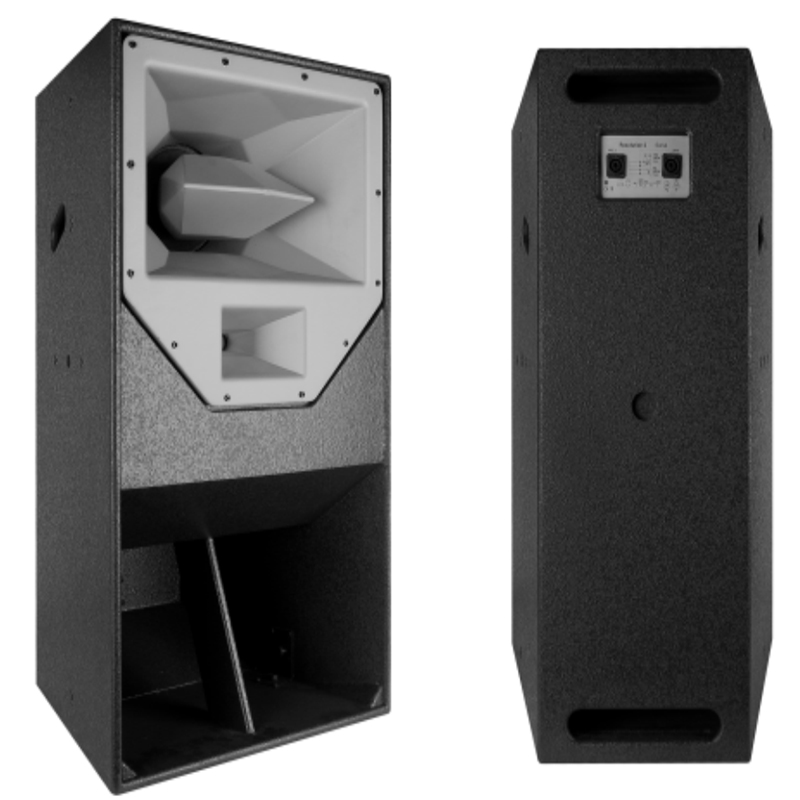

The R2 pro audio pa speaker is a surprisingly compact, horn-loaded 3 way full range speaker. The drivers on board include a 15" woofer, an 8"midrange, and a 1" high frequency compression driver. Features such functional waveguide and driver technology provide a unique and powerful sound. the professional speaker box addresses the need for quality response and level from a small source.
It usually coupled with the dual 18 inch L218MK2 subwoofer.
R2 15 inch outdoor speaker features
1、Full range and compact speaker box；

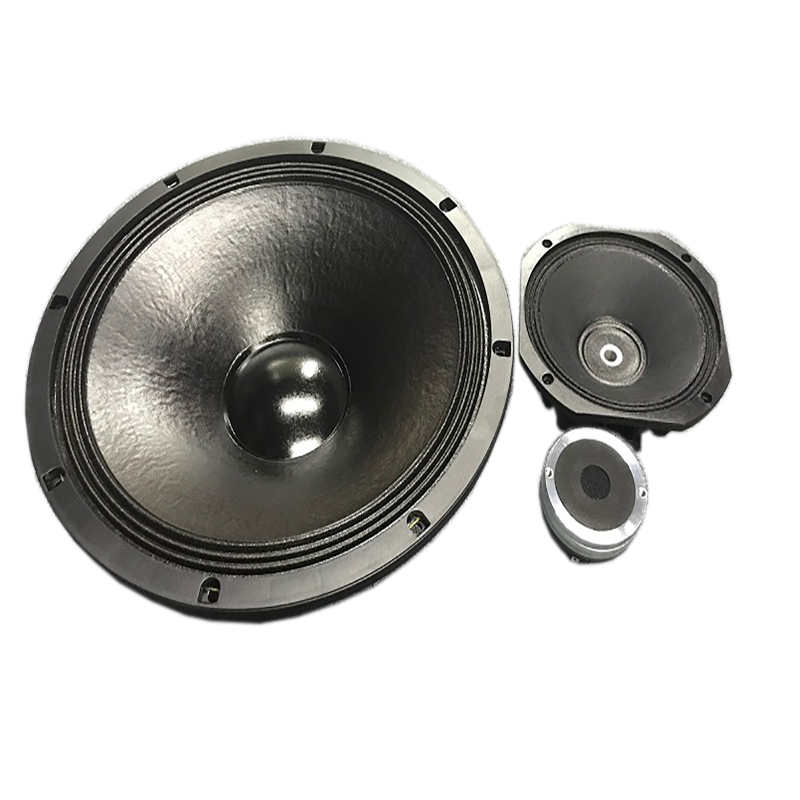

2、1x15 inch; 1x8 inch; 1x1.75 inch
3、High efficiency horn load speaker drivers
4、3-way bi-amp speaker
5、Complete range of flight and mounting options
6、Mounted with M10 fly points
Horn loaded speaker application
Larger nightclub performance
Large scale installs
3 way professional speaker specification
| Model | R2 |
| Frequency Response( ±3dB) | 50Hz-18KHz |
| Sensitivity(1w/1m) | LF:102dB |
| MF:106dB | |
| HF:107dB | |
| Crossover Piont | 250Hz |
| Nominal Impedance | LF:8ohms |
| MF+HF:12ohms | |
| Power rated | LF:400 watts |
| MF:200 watts | |
| HF:50 watts | |
| Operating Band | LF: 28 - 250Hz |
| MF:250 - 6k5Hz | |
| LF:6k5Hz - up | |
| Nominal dispersion | 50 ° ×25 °V |
| Dimensions(H ×W ×D) | 920×522 ×445mm |
| Enclosure material | 18mm plywood |
| Surface finished | Silver or Violet color selectable |
| Net weight | 48kg passive/ 53kg powered |
| Low frequency driver | 1 ×15 inch |
| Mid frequency driver | 1 x 8 inch |
| High frequency driver | 1 ×1 inch |
| Input Connectors | 2 x Speakon NL4 |
