Overview

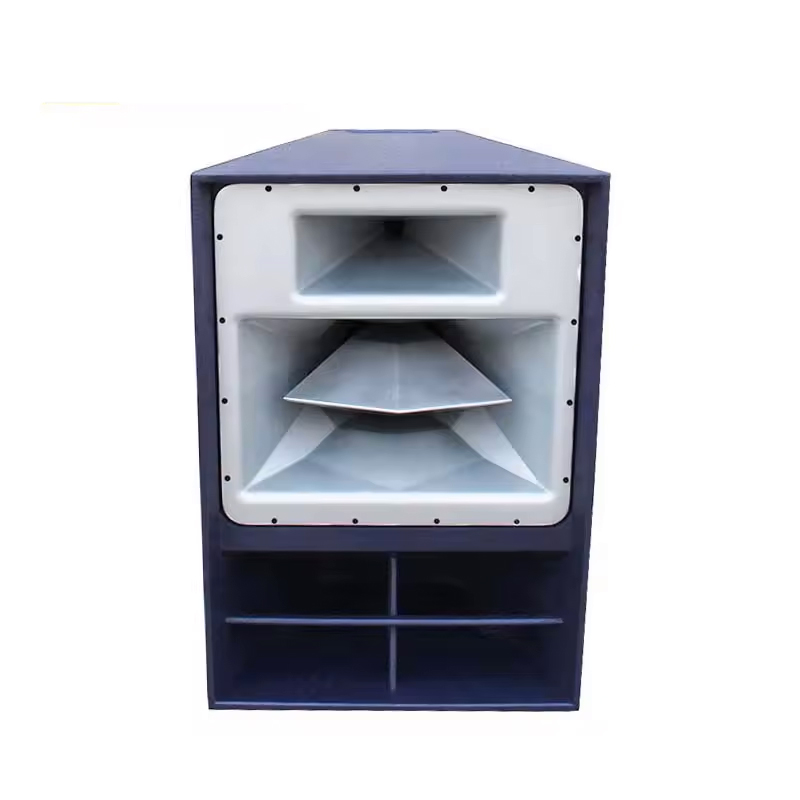

R6 DJ sound high power speaker combining a 15" mid-bass driver, a 10" mid-bass driver and a tweeter 1.4" compression driver in a very compact enclosure to deliver high efficiency and peak performance. The surround speaker has a special waveguide: nominal 50° horizontal dispersion, 40° field of view, double wide, covering over 90°.
R6 dj equipment speaker system provides great sound and rugged durability to those who depend on portable PA systems. The R2 is a 15", 3-way speaker cabinet that features impressive SPL output with a relatively focused coverage pattern.
live speaker system Features
3-way speaker delivers impressive mix clarity
Handles 3,200 watts (peak)/1,600 watts (RMS)
Premium 15", 6.5" and 3" JBL drivers for quality sound
Durable plywood cabinet with Duraflex finish
Convenient pole mountable, stackable, or flyable options
dj sound speaker Specification
Model | R6 |
Frequency Response( ±3dB) | 55Hz-18KHz |
Sensitivity(1w/1m) | LF:103dB |
| MF:108dB | |
| HF:109dB | |
Crossover Point | 250Hz |
Nominal Impedance | LF:8ohms |
| MF:16ohms | |
| HF:32ohms | |
Power rated (AES) | LF:400 watts |
| MF:250 watts | |
| HF:75 watts | |
Operating Band | LF: 70 - 220Hz |
| MF:220- 4kHz | |
| LF:4kHz - up | |
Nominal dispersion | 50 ° ×25 °V |
Enclosure material | 18mm plywood |
Surface finished | Black or Violet color selectable |
Net weight | 57kg passive/ 63kg powered |
Low frequency driver | 1 ×15 inch |
Mid frequency driver | 1 x 10 inch |
High frequency driver | 1 ×3 inch |
Input Connectors | 2 x Speakon NL8 |
