Description
VRX full range line array speaker system is designed for theaters, stadiums, outdoor performances and other venues. VRX932LA-1 2 way line array consists of a 12 "low-frequency driver and three 36mm neodymium-iron-boron high-frequency driver, high-frequency coverage angle of 100 ° × 15 °. VRX918 subwoofer sound box audio system is composed of an 18 " neodymium subwoofer drivers. VRX full range audio speaker adapted high-density birch plywood production, and the box surface sprayed black wear-resistant sand point coating, anti-aging strength is very strong, can withstand the sun and rain for a long time, and installed in the indoor is able to prevent moisture and other harsh environments.
VRX line array speaker system has a real natural performance, its biggest feature is small size, light weight, projection distance, high sensitivity, strong penetration, high sound pressure level, clear voice, strong reliability, sound coverage between the region is uniform and other characteristics.
VRX single 12 inch 2 way line array system is designed with a perfect hanging system, can be very convenient for hanging applications. Users can also be ground application, the use of VRX918 18 inch stage audio box subwoofer as a support platform, the use of a pillar can be used to support the use of VRX932 full range line array speaker.
Key Features
1x12 inch; 3x1 inch neodymium speaker driver

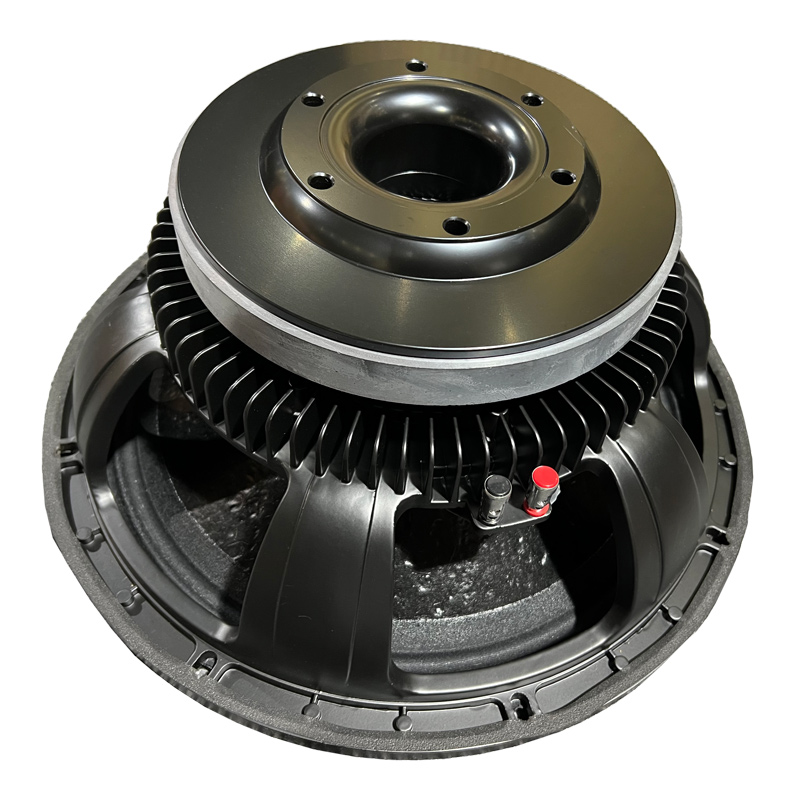

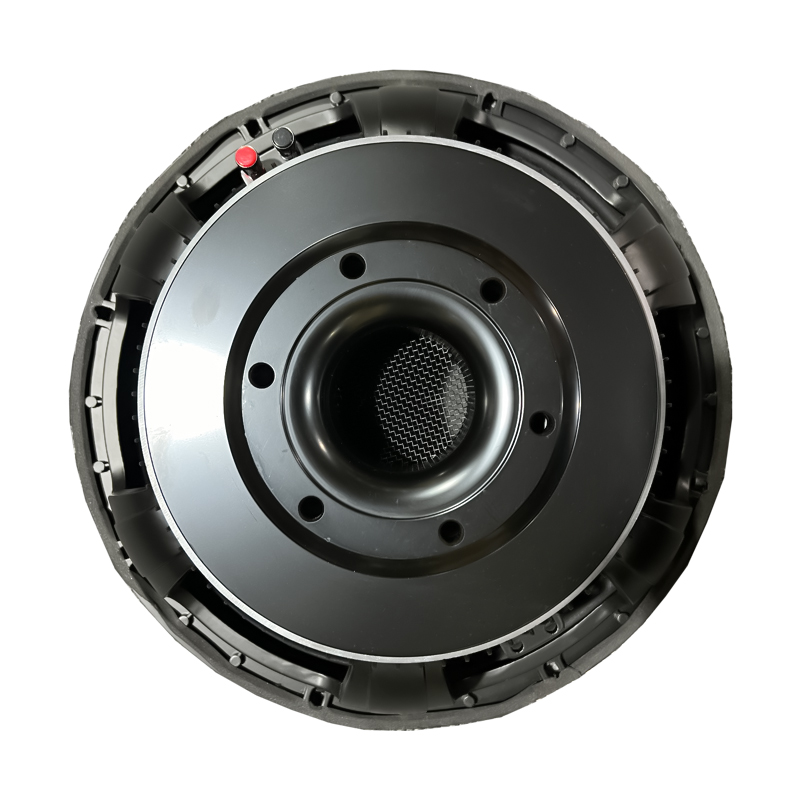

18 inch neodymium loudspeaker
High-density birch plywood cabinet
Weather resistant polyurea paint
Lightweight and compact.
Applications
Theaters, stadiums, outdoor performances, indoor show bars, large stages, multi-purpose halls, and fixed installation systems.
Specification

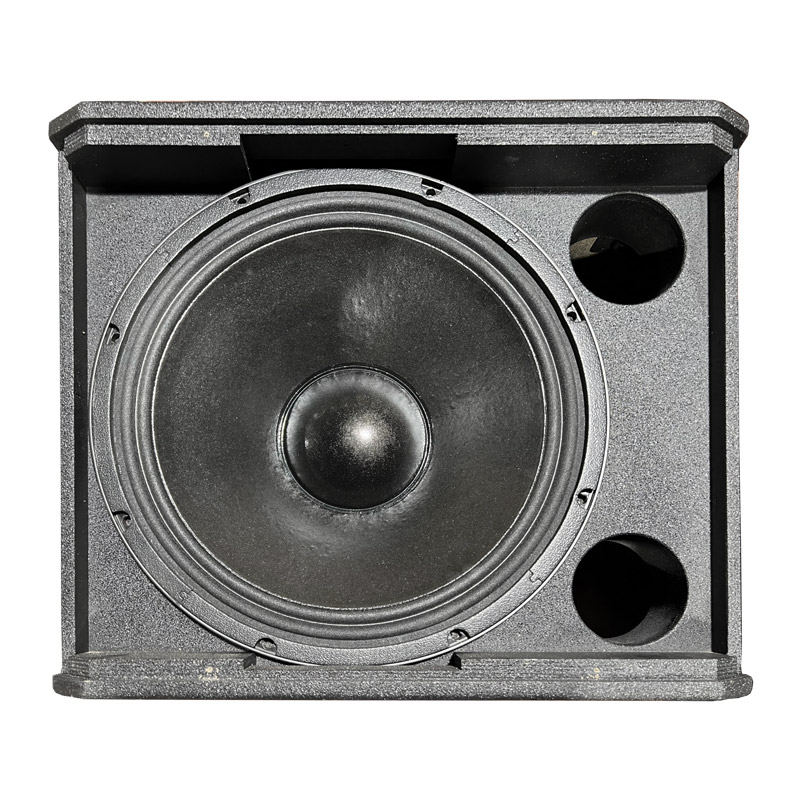

VRX932LA-1 single 12 inch way line array
Frequency Range (-10 dB): | 57 Hz - 20 kHz |
Frequency Response (±3 dB): | 75 Hz - 20 kHz |
Coverage pattern: | 100° x 15° nominal (horizontal x vertical) |
Long-term power(RMS): | 800W |
Power (Continuous/Program/Peak): | Passive: 800 W / 1600 W / 3200 W |
Maximum System SPL : | Passive: 130 dB; |
Sensitivity: | 95dB |
Dimensions (H x W x D): | 343 mm x 597 mm x 376 mm |
Weight (KG): | 24 |

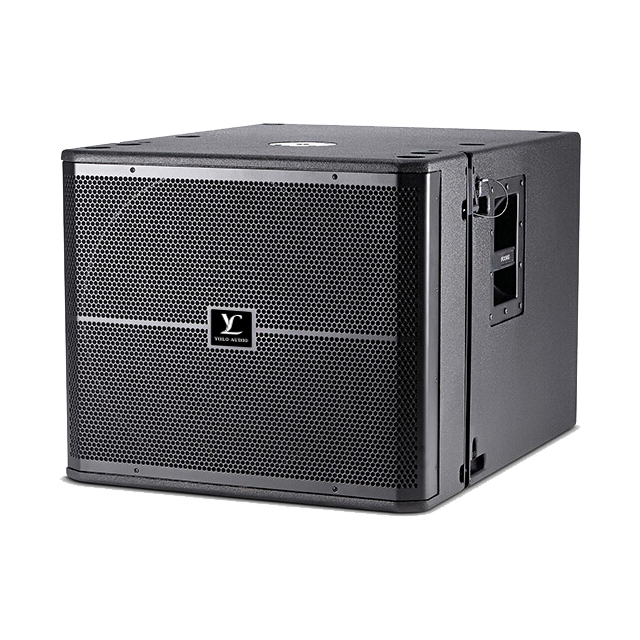

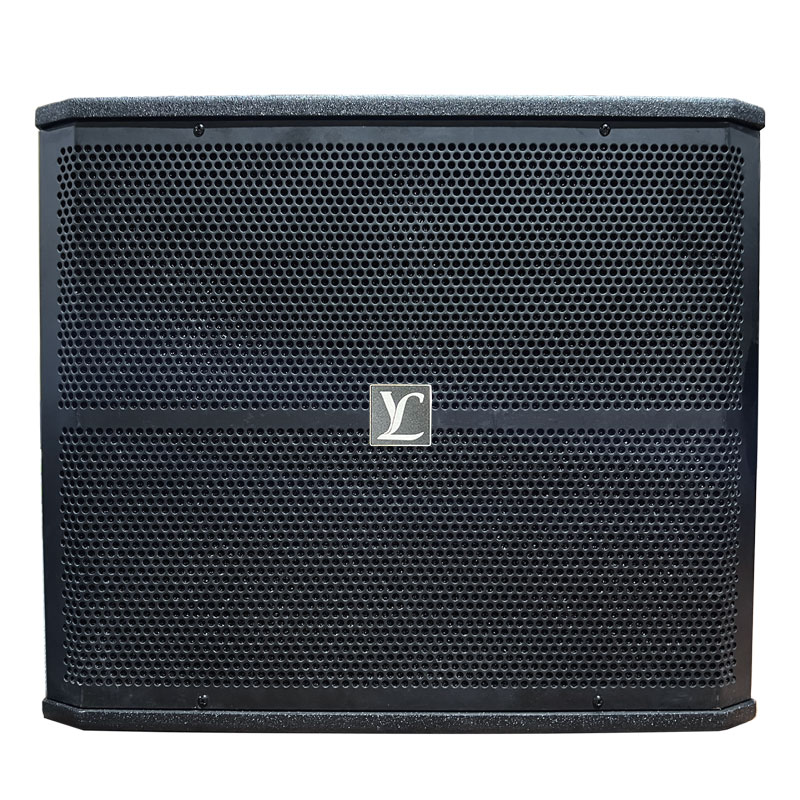

VRX918S single 18 inch pro audio subwoofer
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 31 Hz- 220 Hz |
| Dimensions (H x W x D) | 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) |
| Frequency Response | 34 Hz-220 Hz |
| Recommended Crossover Frequencies | 80 Hz, 24 dB / octave HPF 80 Hz, 24 dB / octave LPF |
| System Maximum SPL | 130 dB SPL peak |
| System Sensitivity | 95 dB SPL |
| Driver | 1x18＂Neodymium Subwoofer |
| Nominal Impedance | 8 ohms |
| Enclosure | 18 mm, 13-ply plywood |
| Finish | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing. |
| Input Connectors | NeutrikSpeakon NL-4 (x2) |
| Net Weight | 37 kg |
