V-SUB PA Audio Cardioid Subwoofer Speaker for Home Theater

								1. 1x18inch and 1x12inch neodymium drivers.
2. cardioid design.
3. good quality birch wood cabinet box.
4. weather resistant coating
SHARE:

Overview:


The V-SUB is a high efficiency power bass subwoofer, which houses two long range neodymium drivers, 18" driver in a bass-reflex design confronting to the front and a 12" driver in a two chamber bandpass design emanating to the back.

The V-SUB subwoofer can be utilized to supplement V8 loudspakers in different pattern, ground stacked or flown, either incorporated over a V8 array or as a different line.

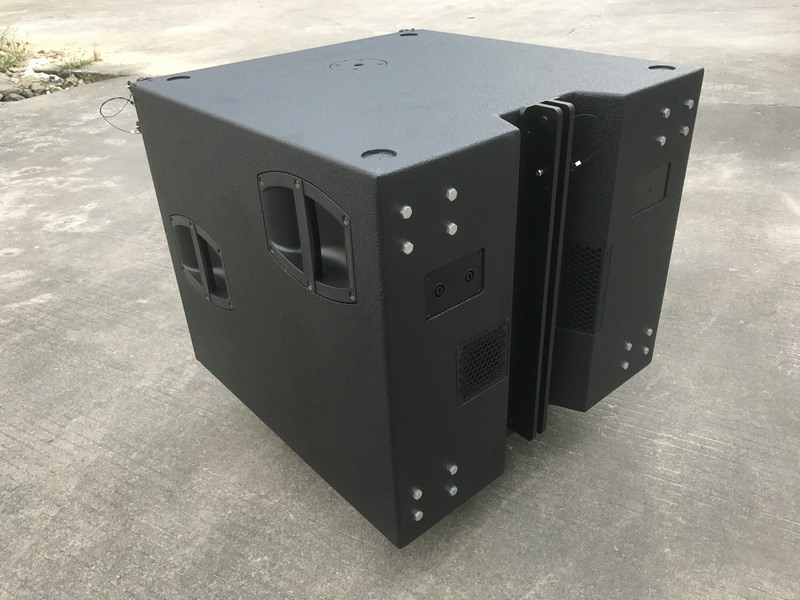

The V-SUB enclosure is made from the muti-layers birch plywood and has an effect and weather protected finish. The front of the speaker enclosure is covered by  a rigid metal grill backed by an acoustically transparent foam. Each side panel consists two handles, whilst the top panel has an M20 high stand flange inserted.


Features:


  1. 1x18inch and 1x12inch neodymium drivers.

  2. cardioid design.

  3. good quality birch wood cabinet box.

  4. weather resistant coating


 Specificarion:


Frequency response (–5 dB standard)

37 - 115 Hz

Configuration

High performance flyable cardioid subwoofer

Nominal impedance

8 Ω

Power handling capacity (RMS/peak 10 ms)

800/3200 W

Splay angle settings

0° and 2.5°

Components

1 x 18" driver
  1 x 12" driver

Connections

2 x NLT4 F/M
  optional 2 x NL4 or 2 x EP5




Dimensions, weight


Dimensions (H x W x D)

606 x 700 x 7283 / 830 mm

Weight

64 kg
