Description

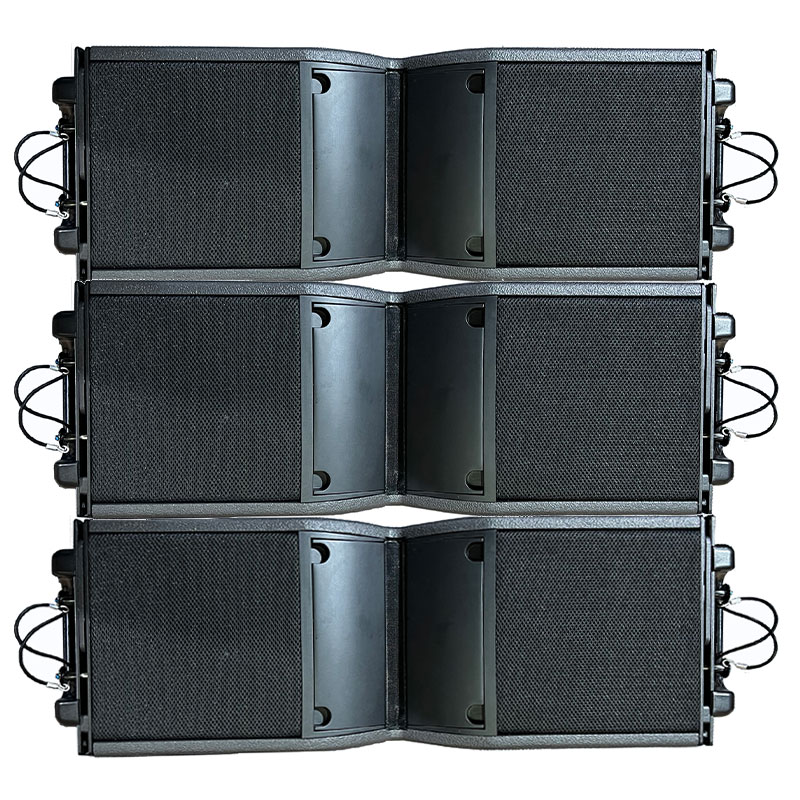

The LA208 dual 8 inch line array speaker offers maximum flexibility for all sound reinforcement designs with optional low frequency extension. This bi-amped, compact 2-way loudspeaker has superb projection, smooth sound and wide horizontal directivity.

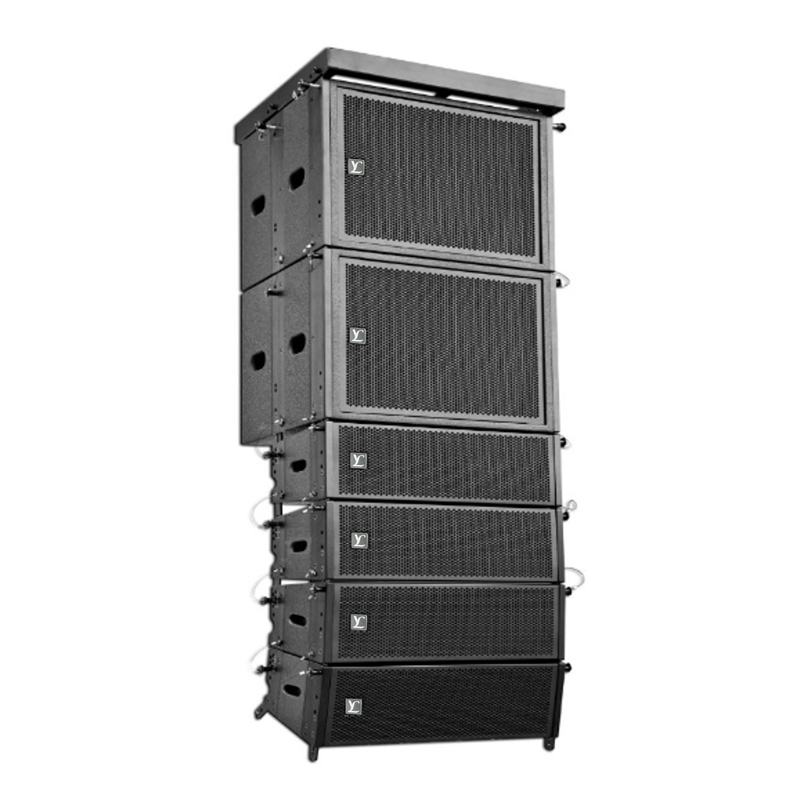

On its own, LA208 line array sound system is the best choice for speech and vocal programs. When configured with the LA18 single 18 inch subwoofer, the LA208 speaker box line array exhibits all-round performance, creating a low-frequency punch suitable for most electronic concert programs.
Features

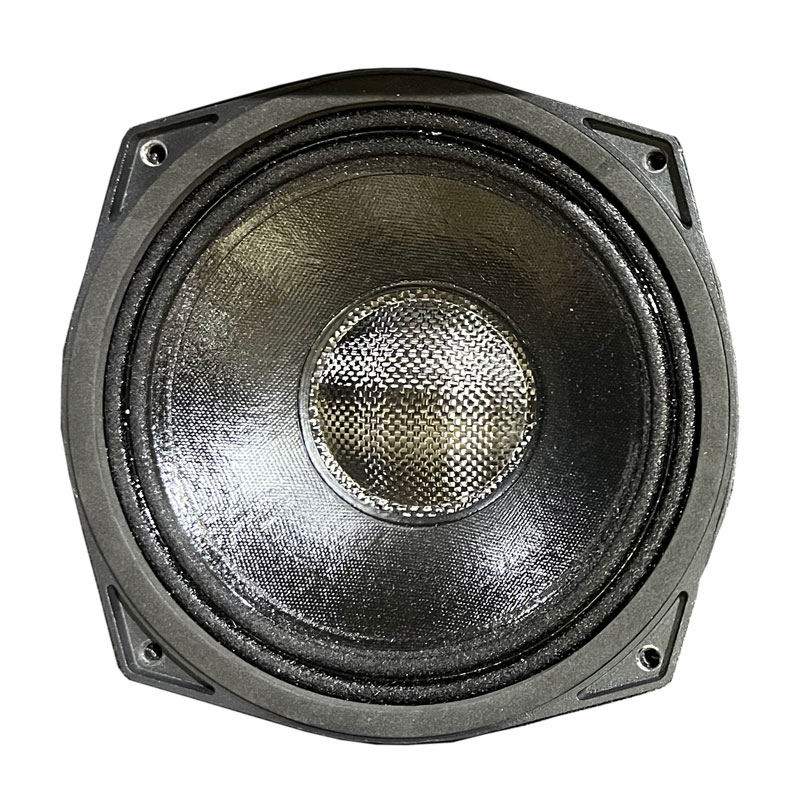

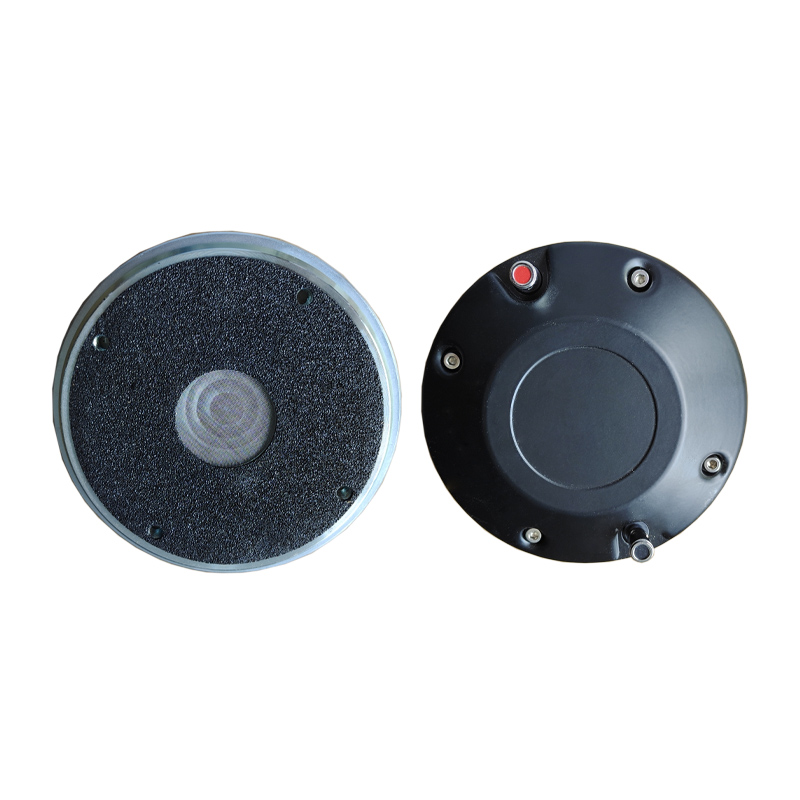

LA208 line array speaker box equipes with 2x8 inch neodymium low frequency driver, one 3 inch neodymium compression driver provide clean and crystal sound.
With its adjustable pan flex, user can adjust the horizontal directivity degree to 70° or 110° symmetrical or 90° asymmetrical on both sides.

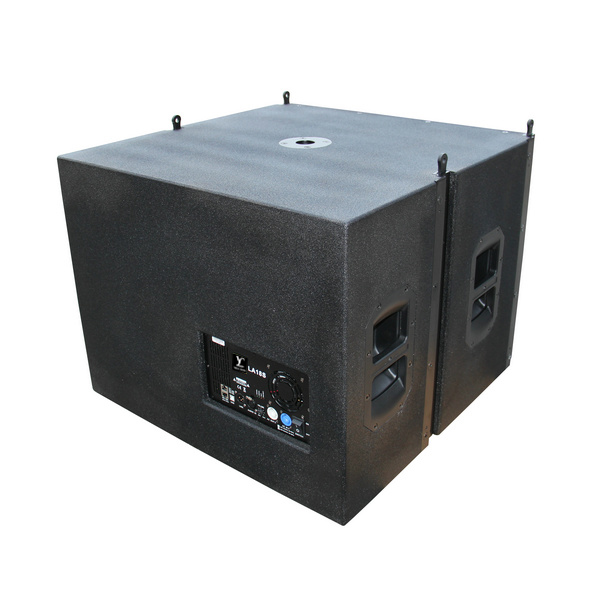

LA18 subwoofer consists of one 18 inch neodymium woofer with 100mm voice coil. It is a compact, high power line array subwoofer. Lightweight, high-efficiency system design, sensitivity up to 102db.
The speaker sound system cabinet made of high-quality birch plywood and waterproof polyurea paint ensure the durability.
Specification
LA208 dual 8 inch bi-amped line array
Usable bandwidth (-10dB) | 55 Hz - 20 kHz |
Nominal directivity (-6dB) | Horizontal 70, 90, 110° symmetric |
Vertical: Dependent upon number of elements and line source curvature | |
Maximum SPL1 | 141 dB |
RMS handling capacity | LF: 450 W HF: 80 W |
Components LF: 2 x 8’’ neodymium weather-resistant HF: 1 x 3’’ neodymium diaphragm compression driver | |
| Nominal impedance: LF = 8 ohms, HF = 8 ohms | |
Dimension (W x H/h x D) | 730 x 250/164 x 482 27.7 x 9.8/6.4 x 19 in |
Weight (net) | 26 kg 57.2 lbs |

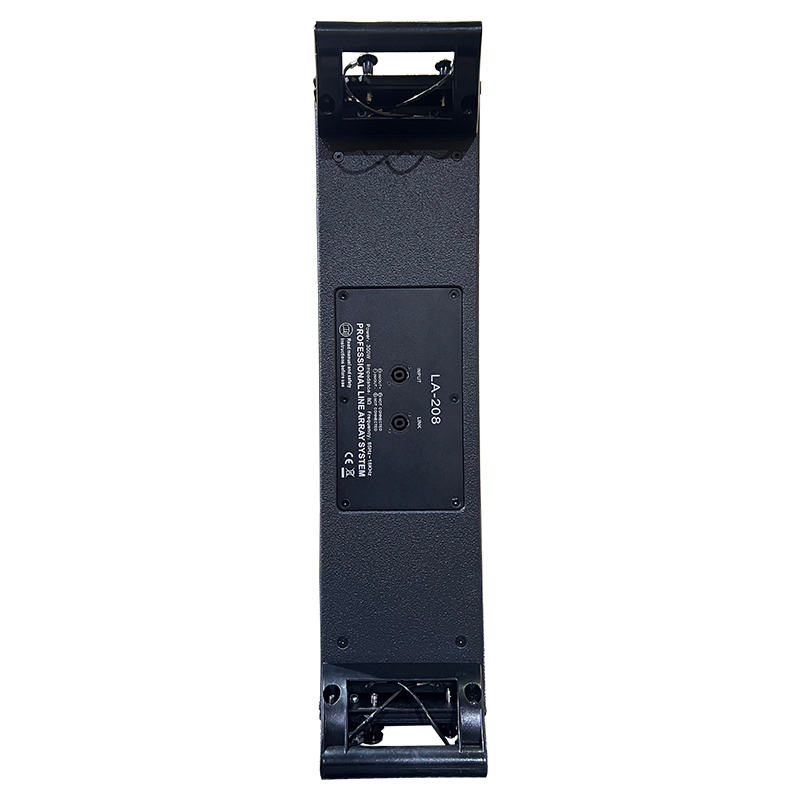

Connectors | 2 x 4 Neutrik |
Material | birch plywood |
LA18S single 18 inch active subwoofer
Low frequency limit (-10dB) | 32 Hz |
Maximum SPL1 | 138 dB |
RMS handling capacity | 800W |
| Components LF: 1 x18" neodymium woofer | |
| Nominal impedance: 8 ohms | |
Dimension (W x H/h x D) | 750 x 540 x 707mm 29.5 x 21.3 x 27.8 in |
Weight (net) | 52 kg |
Connectors | 2 x 4 Neutrik |
Material | birch plywood |
