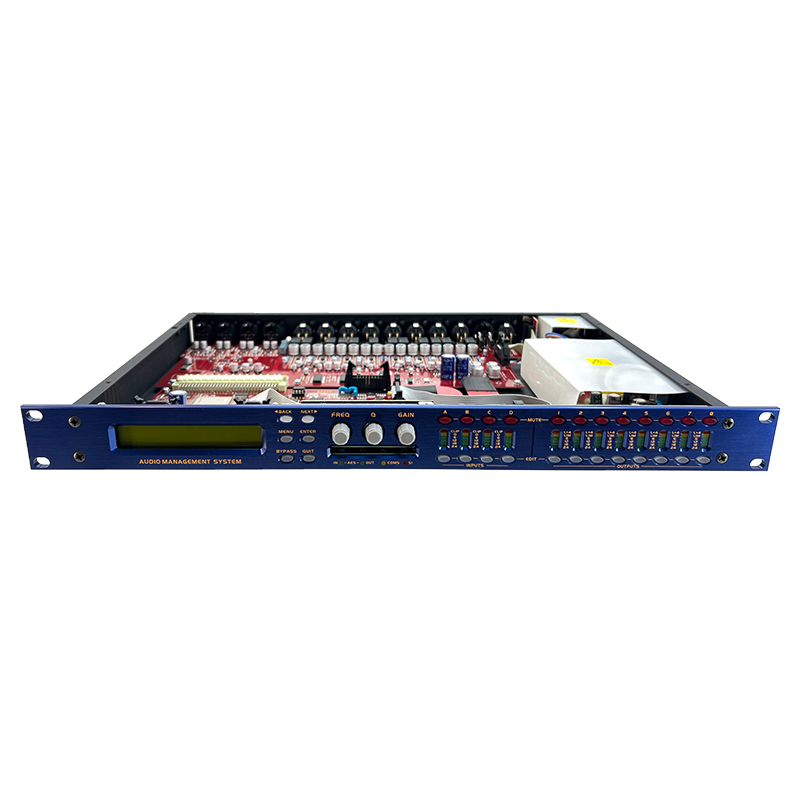

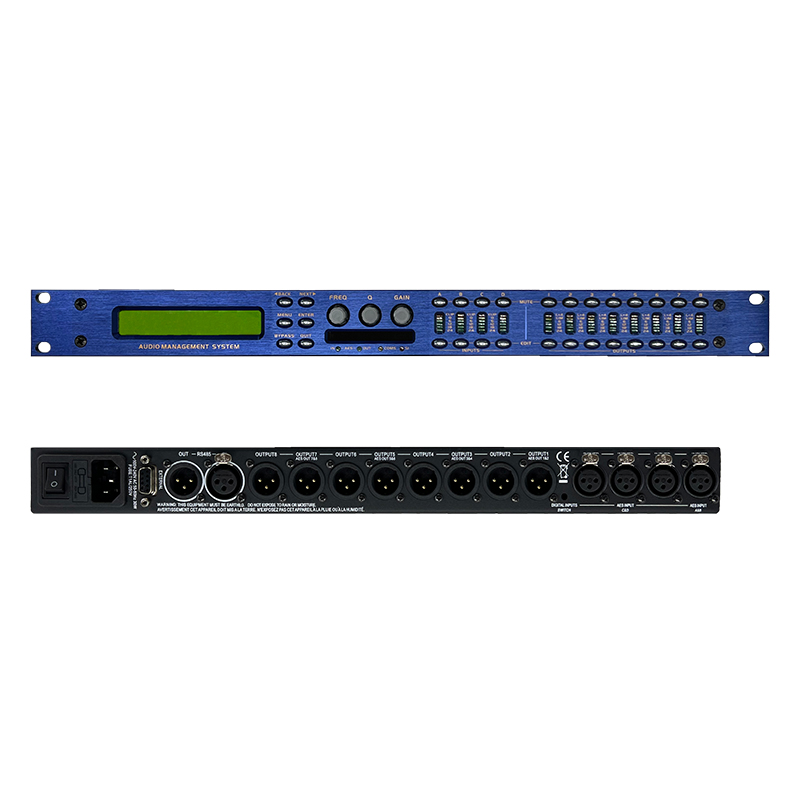

DP448 Processor | |
Frequency Response | ±0.5dB 20Hz - 20kHz,-3dB @ 32kHz |
Dynamic Rang | >116dB 20Hz – 20kHz. Unwtd |
Distortion | <.02% @ 1kHz,+18dBm |
Maximum Delay | 650mS. (increment 0.325 μs steps) |
Min Step Size | 0.3 μS |
Input Gain Adjustable | +6dB to -40dB in 0.1dB steps |
Output Gain Adjustable | +15dB to -40dB in 0.1dB steps and mute |
Ecualización paramétrica | |
Filters Parametrics | 8 per input / 9 per output |
Filter Gain | +15dB to -30dB in 0.1dB steps |
Frequency Range | 19.7Hz -32kHz,1/36 octave steps |
Filter Q/BW | 0.4 to |28 /2.5 to 0.008(Sections switched to shelving response) |
Low frequency | 19.2Hz -1kHz |
High frequency | 1kHz – 32kHz |
Shelf gains | ±15dB in 0.1dB steps |
Additional filters | 28-band graphic on each input |
Each parametric can be switched to Bandpass , Allpass , Notch ,VariQ , Shelf and Elliptial response | |
Phase filtering | 2 degree steps on each input and output |
High and Lowpass Filters | |
Filters | 1 of each per output |
Frequency Range HPF | 10Hz – 16kHz, 1/36 octave steps |
Frequency Range LPF | 35Hz – 22kHz, 1/36 octave steps |
Limiters | |
Threshold | +22dBu to -10dBu |
Attack time | 0.3 to 90 milliseconds |
Release time | 4 , 8, 16 or 32 times the attack ime |
D-max Limiter | |
Attack Time | -60 μS |
Release Time | Slow/Mudium/Fast |
Input meter | 2 x 6 point, -24dB to digital clip |
Output meter | 8 x 6 point, -24dB to +4dB into limit |
Display | 2x24 Character LCD |
Size | 1.75＂(1U)x19＂x11.8＂ |
Net Weight | 3.3kg |
Gross Weight | 4.7kg |
