Description

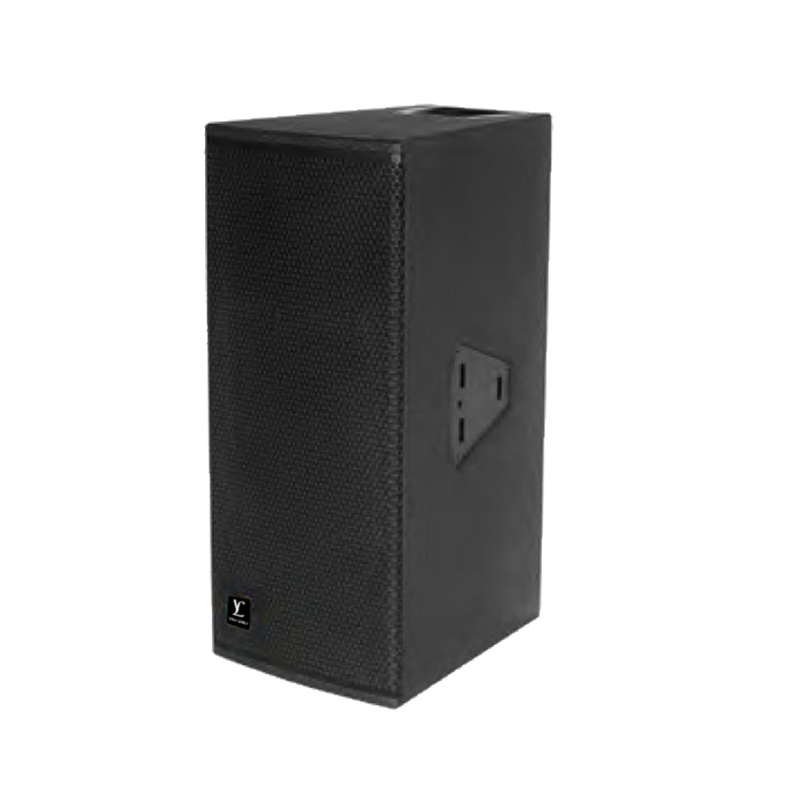

Full Range two-way loudspeaker L10P with two 8“ neodymium speaker drive and one 3” compression driver mounted on a rotating horn.
Compact horn geometry with advanced bass-reflex porting provides full-bandwidth low frequency output.
The compact top speaker, high-performance cabinets offer controllable 110° horizontal directivity and 40° vertical dispersion down to 500 Hz.
Features
The L10P dual 8 inch speaker offers a wide range of deployment options, particularly suitable as a standalone full-range system or in combination with other YOLO Audio products, either floor-stacked or suspended.
The cabinet is made of waterproof birch plywood, impact and open-air protective paint PCP (Polyurea Cabinet Protective Paint).
The front panel of the full range sound system cabinet is protected by a sturdy metal mesh and lined with acoustic foam.
The top speaker enclosure is fitted with a pair of handles and M10 threaded inserts for mounting lifting elements
Two M10 threaded inserts for mounting 8mm load pins are also provided to extend the mounting options.
Application
Theatre and Opera
Touring and Concerts
Houses of worship
Musical productions
Nightclubs and Bars
Specification
Nominal impedance | 8 Ω |
Power handling capacity (RMS/peak 10ms) | 400/1600 W |
Nominal dispersion angle (hxv) | 110°x40° |
Splay angle settings | 0° - 14° (1° increment) |
Components | 2 x 8" driver with neodymium magnet Passive crossover network |
Max SPL | 136dB |
Connections | 2 x NL4 |
Dimensions (H x W x D) | 580 x 257 x 341 mm |
Weight | 18 kg |
