Description
FP20000Q subwoofer amplifier delivers clean, solid power required to drive medium to large sized subwoofer speakers. Its compact design is compatible with various application like outdoor concert, cinema, theater and church.

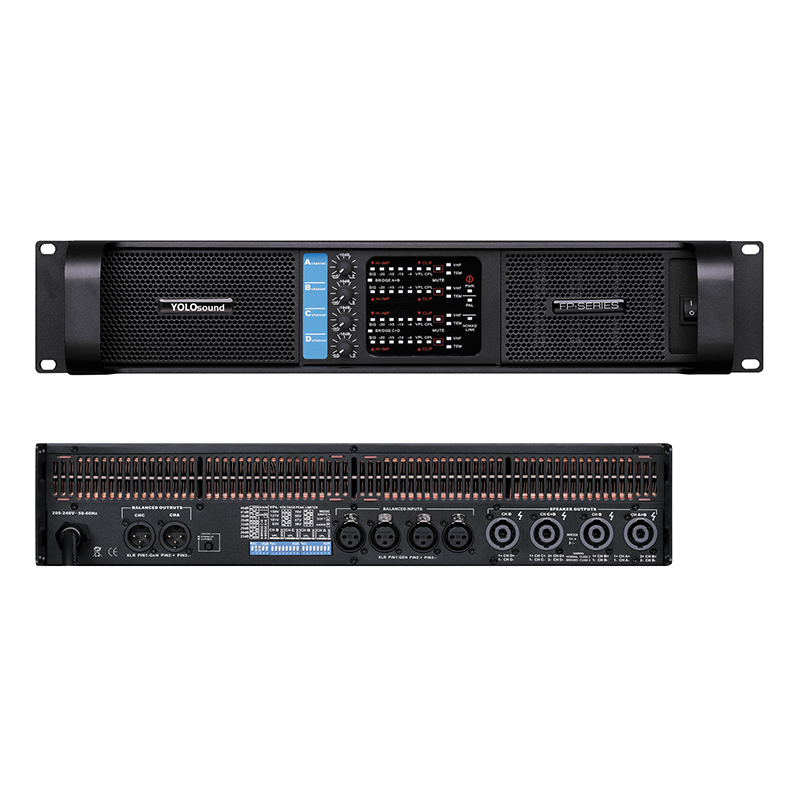

4 channel 20000W power amplifier deliver power rated at 4000W per channel into 4Ω impedance, capable for loading power subwoofers into 8Ω and 4Ω. Front panel indicators provide at-a-glance monitoring of signal status and amplifier status.
Features
Stable Power Supply:

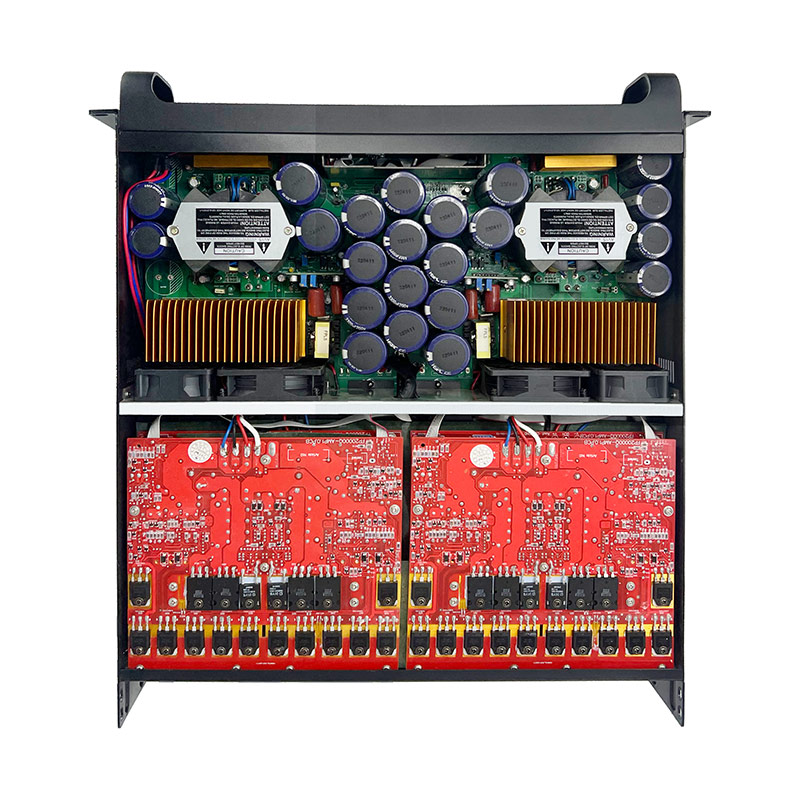

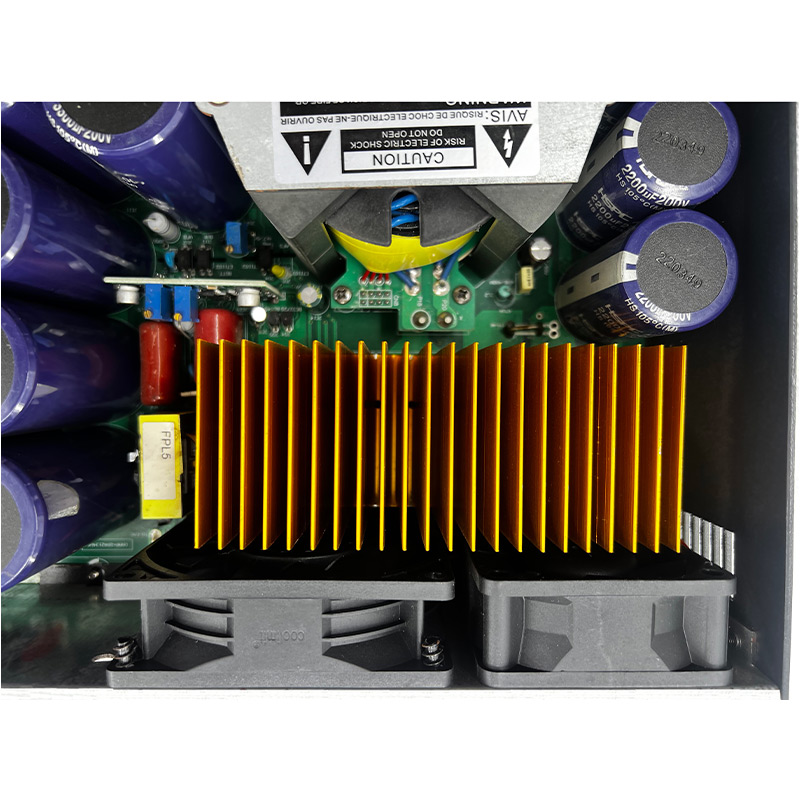

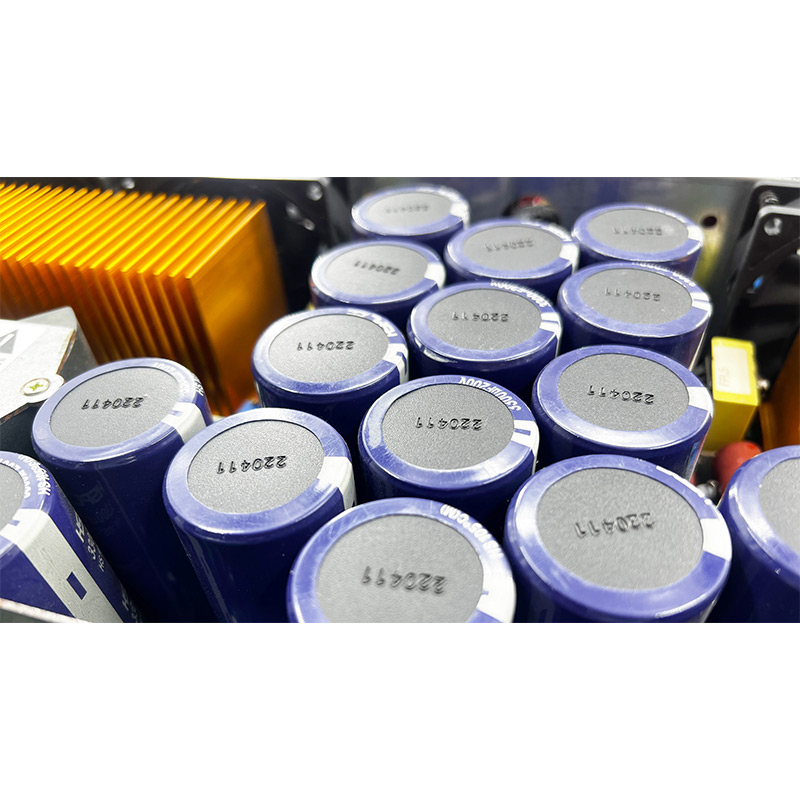

FP20000Q high end audio amplifier installed two high frequency transformers, provides faster charge and discharge performance.

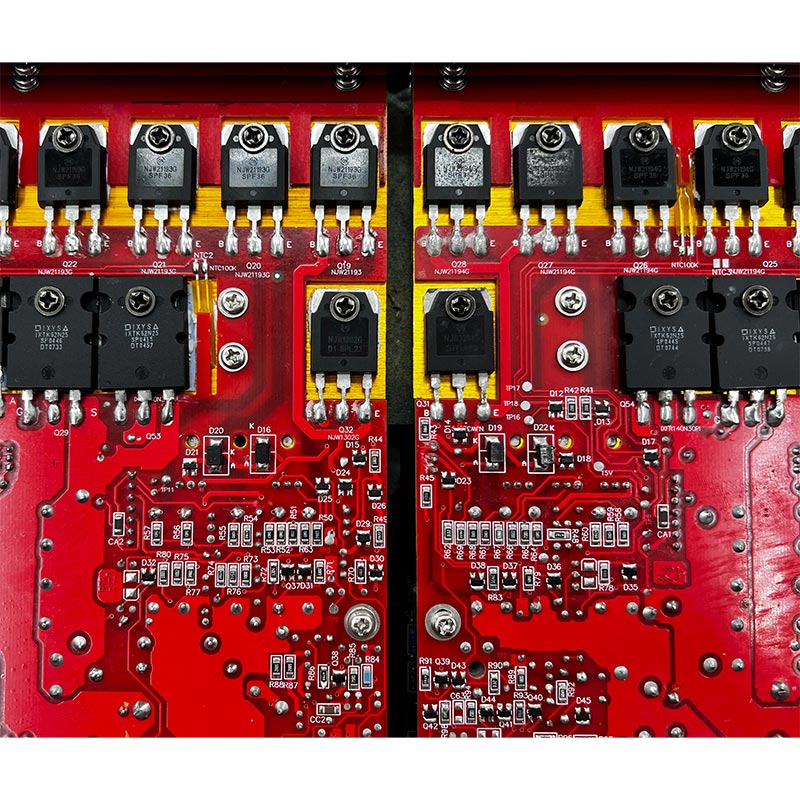

Advanced Class TD Amplification
This bass speaker amplifier adapted class td amplification technology with advanced circuits and signal processing algorithms to optimize audio performance.
Comprehensive Protection Scheme
High power amplifier offers various protection: short circuit, DC voltage, turn-on/off transient, current inrush.
Specification
ITEM （Model） | FP20000Q |
8Ω Stereo Power（RMS） | 4x2100W |
4Ω Stereo Power（RMS） | 4x4000W |
8Ω Bridge Power（RMS） | 2x8000W |
4Ω Bridge Power（RMS） | 2x10000W |
Channels | 4 |
Output Circuit | Class TD |
Frequency Response（+0/-0.3dB，1W/8Ω） | 20Hz-34KHz |
THD 20Hz-20KHz for 1W | <0.1% |
Signal-to-Noise Ratio | >112 dBA |
Channel separation（Crosstalk）at 1 KHz | >70 dB |
Input Connectors （per channel） | 3-pin XLR,electronically balanced |
Output Connectors （per channel） | Binding Posts 2-pole |
TourClass Protection | Short circuit,DC voltage,turn-on/off transient,current inrush |
Power AC | 220V~240V |
Input impedance | 20 Kohms |
Level adjustment（per ch.） | Front-panel potentiometer,31 position detended from -inf to 0 dB |
Packing Size | 570x580x14mm ，1pcs/carton |
Net Weight（KG） | 15 |
Gross Weight（KG） | 21.45 |
