Description

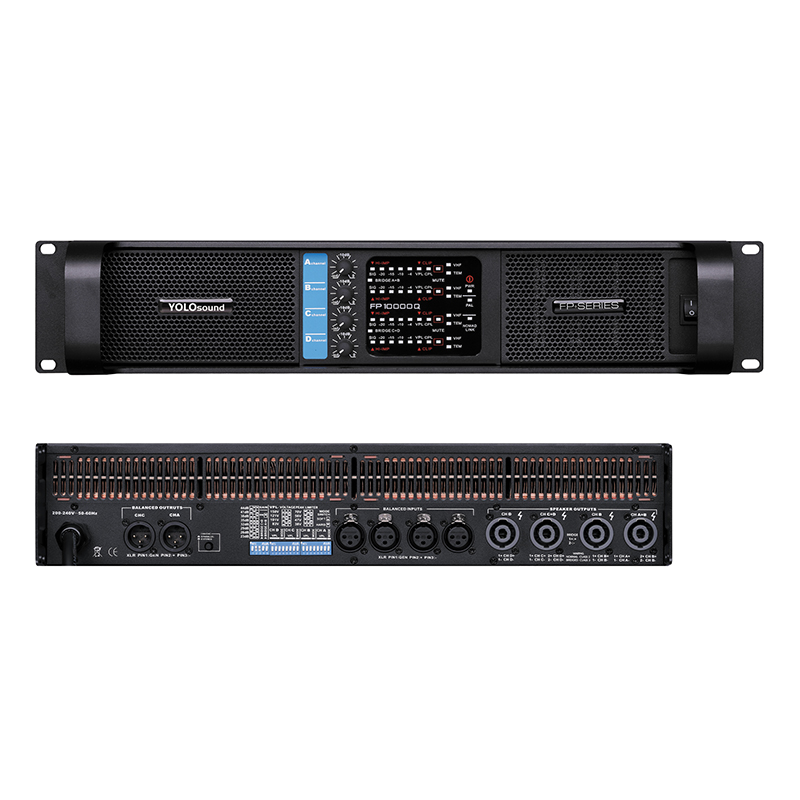

FP10000Q 4 channel switching class td power amplifiers design for line array speaker, full range speaker and speaker monitor. it delivers 4x1350W at 8 ohms, 4x2100W at 4 ohms, 4x2500W at 2 ohms power rate, provide low distortion, clean sound and stable performance.
Thanks to the advance class TD amplification and SMPS power supply technology, FP10000Q professional audio power amplifier provides good power density and stable output voltage.
The 10000W stereo power amplifier provide completely protection function, like short-circuit, DC voltage, overheating, turn-on/off transient, current inrush.
Features of line array power amplifier

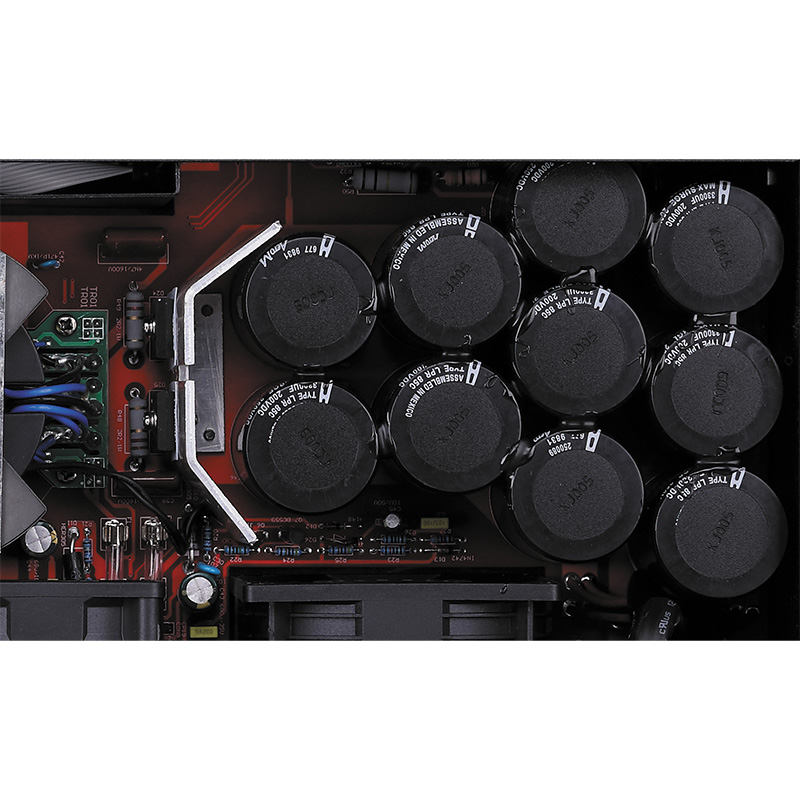

SMPS Switching power supply
Class td amplification
Pure copper heatsinks provide high efficiency cooling

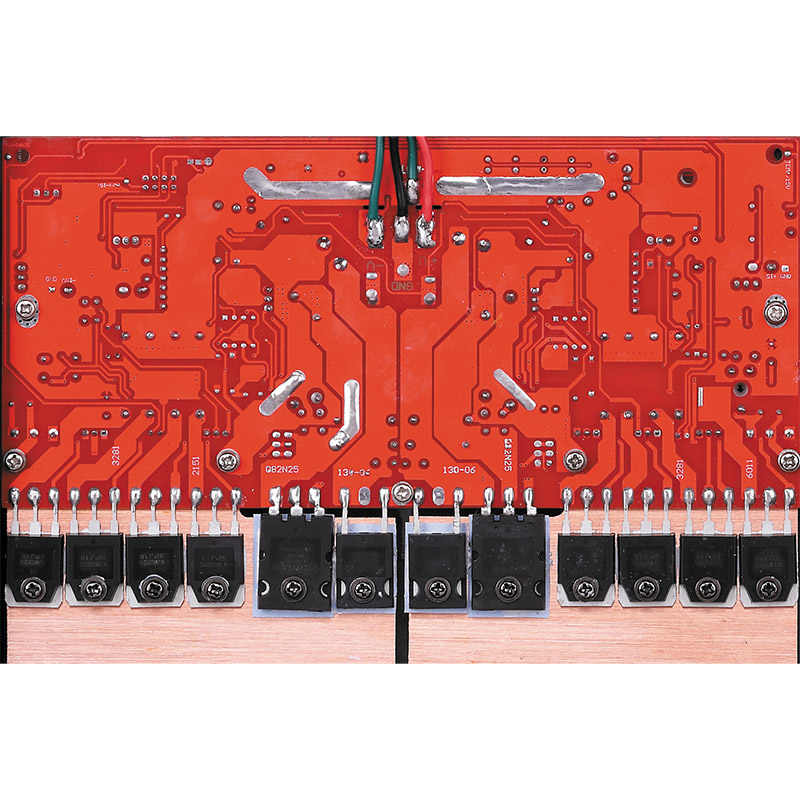

Original ON transistors provide real power rate
2 ohms long term load stably.
Application of 4 channel power amplifier
Touring event
Stadium
Wedding
Theater
Bar
Specification
| ITEM （Model） | FP10000Q |
8Ω Stereo Power（RMS） | 4x1350W |
4Ω Stereo Power（RMS） | 4x2100W |
8Ω Bridge Power（RMS） | 2x4200W |
4Ω Bridge Power（RMS） | 2x5000W |
Channels | 4 |
Output Circuit | Class TD |
Frequency Response（+0/-0.3dB，1W/8Ω） | 20Hz-34KHz |
| THD 20Hz-20KHz for 1W | <0.1% |
Signal-to-Noise Ratio | >112 dBA |
Channel separation（Crosstalk）at 1 KHz | >70 dB |

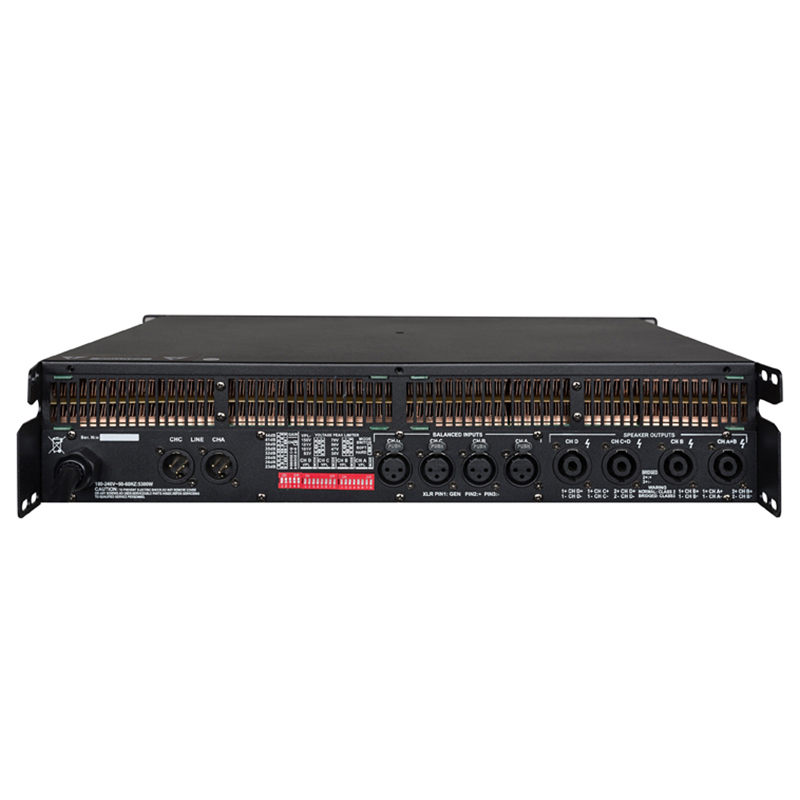

Input Connectors （per channel） | 3-pin XLR,electronically balanced |
Output Connectors （per channel） | Binding Posts 2-pole |
TourClass Protection | Short circuit,DC voltage,turn-on/off transient,current inrush |
Power AC | 220V~240V |
Input impedance | 20 Kohms |
Level adjustment（per ch.） | Front-panel potentiometer,31 position detended from -inf to 0 dB |
Packing Size | 570x580x158mm， 1pcs/carton |
Net Weight（KG） | 13 |
Gross Weight（KG） | 15 |
