Description
H6.0 2 channel class h power amplifier with stereo parallel, bridge three modes, multiple protection to ensure safety. Using high-precision SMD devices and toroidal transformers, the product has high reliability and strong anti-interference ability. Three-stage class H line design, small size, good heat dissipation. Suitable for meeting rooms, stadiums, etc.
Features of home audio amplifier
With stereo parallel, bridge three mode selection. With DC protection, overload protection, short-circuit protection
Overheating protection, pressure limit protection, soft start protection, machine performance is safer.
Adopting a large number of high-precision SMD devices, automated production process, product reliability is higher.

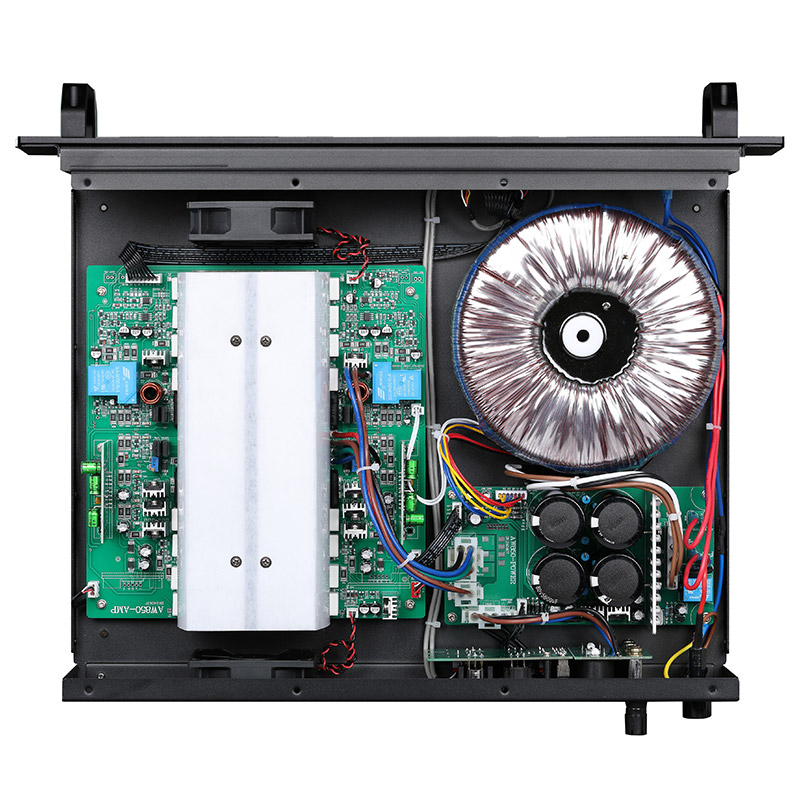

Adopting high-efficiency toroidal transformer, with magnetic shielding layer, effective anti-interference.
Three-stage Class H line design, high efficiency and small size.
Automatic variable speed fan, optimized heat dissipation system, making the machine performance more stable
Application of audio line amplifier
Meeting rooms, multi-functional lecture halls, sports venues, bars, KTVs, theaters.
Specification
ITEM （Model） | H4.0 | H6.0 | H8.0 |
8Ω Stereo Power | 2x400W | 2x550W | 2x800W |
4Ω Stereo Power | 2x600W | 2x820W | 2x1200W |
8Ω Bridge Power | 900W | 1250W | 1800W |
Channels | 2 | ||
Output Circuit | Class AB | Class H | |
Frequency Response | 20Hz-20KHz（+0/-0.5dB） | ||
Input Sensitivity | 0.7V / 1.0V / 1.5V | ||
Input Impedance | Balanced: 20K ohms / Unbalanced: 10K ohms | ||
Cross Talk | >80dB | ||
Damping Factor | >400 | ||
THD+N | <0.05%20Hz-20KHz | ||
Slew Ratio | 40V/ms | ||
Connect | Input：XLR / Output：SPEAKON | ||
Overload Protect | POWER,DC FAULT, Output relay switch | ||
Amplifier Protect | Overheat: Output mute (heat sink temperature>) (auto recovery) | ||
Power AC | 220V~240V | ||
Packing Size | 580x570x140MM, 1pcs/carton | ||
Net Weight（KG） | 16 | 16.5 | 17 |
Gross Weight（KG） | 18 | 18.5 | 19 |
