Description

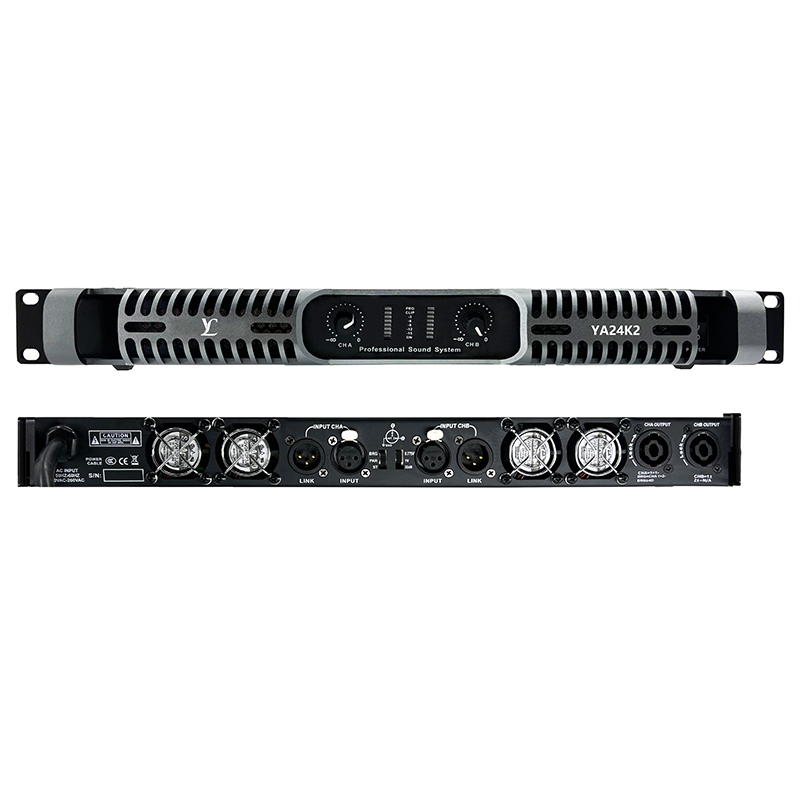

YA24K2 professional audio power amplifier provide high output power 2x0000W at 8 ohms, 2x000W at 4 ohms, 2x0000W at 2 ohms, perfect for powerful subwoofer speaker.
Power Supply
YA24K2 subwoofer amplifier power supply integrated PFC (power correction factor) allow user work in universal voltage from 90V to 265V. Adapted pure copper high transformer with high density centralized winding provide strong and powerful power output.
Class D Amplification
YA24K2 2 channel Class D power amplifier platform designed for small to medium-sized installations that require maximum system flexibility. It also provides reliable performance and good sound quality.
Efficient cooling system

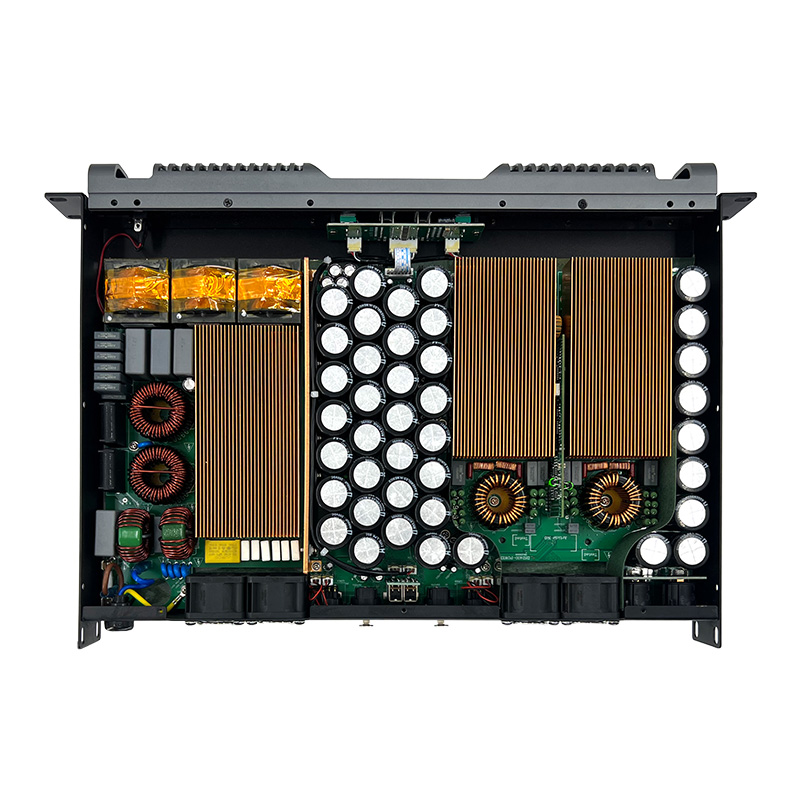

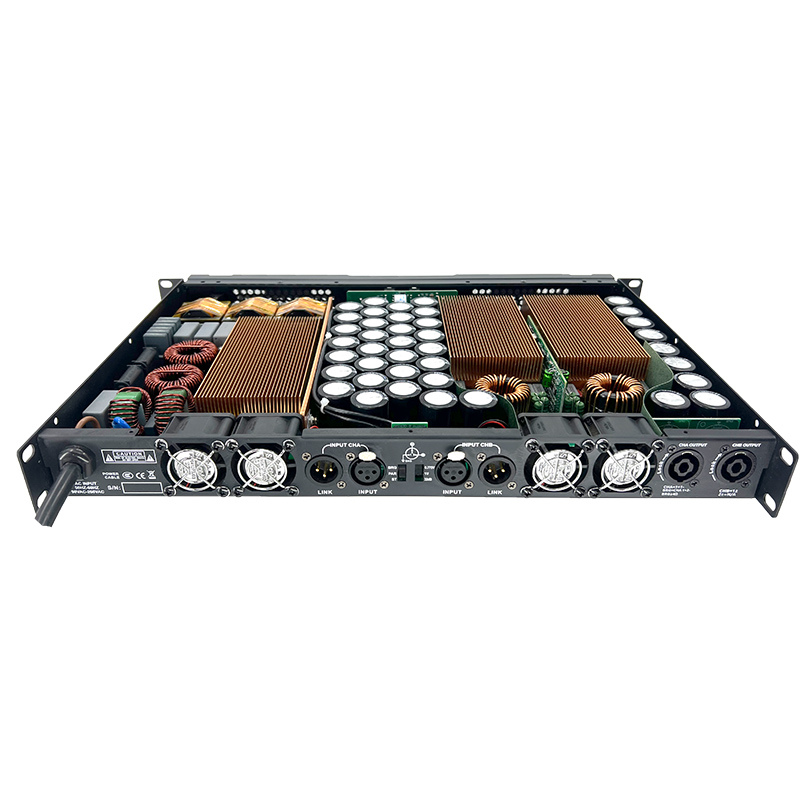

YA24K2 audio subwoofer power amplifier adapted pure copper heatsink, big capacity capacitors, and fast speed fans to create a efficient cooling system. Offering low heatsink and long term load stable performance.
Features
Powerful amplifier for subwoofer
Compact and lightweight
PFC power supply from 90V to 265V
Long term load stable
Function indicators and short circuit protection
Specification of YA24K2 2 channel power amplifier
ITEM （Model） | YA24K2 | |
8Ω Stereo Power | 2x2400W | |
4Ω Stereo Power | 2x4100W | |
2Ω Stereo Power | 2x6300W | |
8Ω Bridge Power | 8200W | |
4Ω Bridge Power | 12600W | |
Channels | 2 | |
Output Circuit | Class D | |
Frequency Response | 20Hz-20KHz（+0/-0.5dB） | |
Input Sensitivity | 0.775V / 1.0V / 1.5V | |
Input Impedance | Balanced: 20K ohms / Unbalanced: 10K ohms | |
Cross Talk | >80dB | |
Damping Factor | >400 | |
THD+N | <0.05%20Hz-20KHz | |
Slew Ratio | 40V/ms | |
Connect | Input：XLR / Output：SPEAKON | |
Overload Protect | POWER,DC FAULT, Output relay switch | |
Amplifier Protect | Overheat: Output mute (heat sink temperature>) (auto recovery) | |
Power AC | 220V~240V | |
Packing Size | 570x440x437MM 5pcs/carton | |
Net Weight（KG） | 9 | |
Gross Weight（KG） | 10 |
