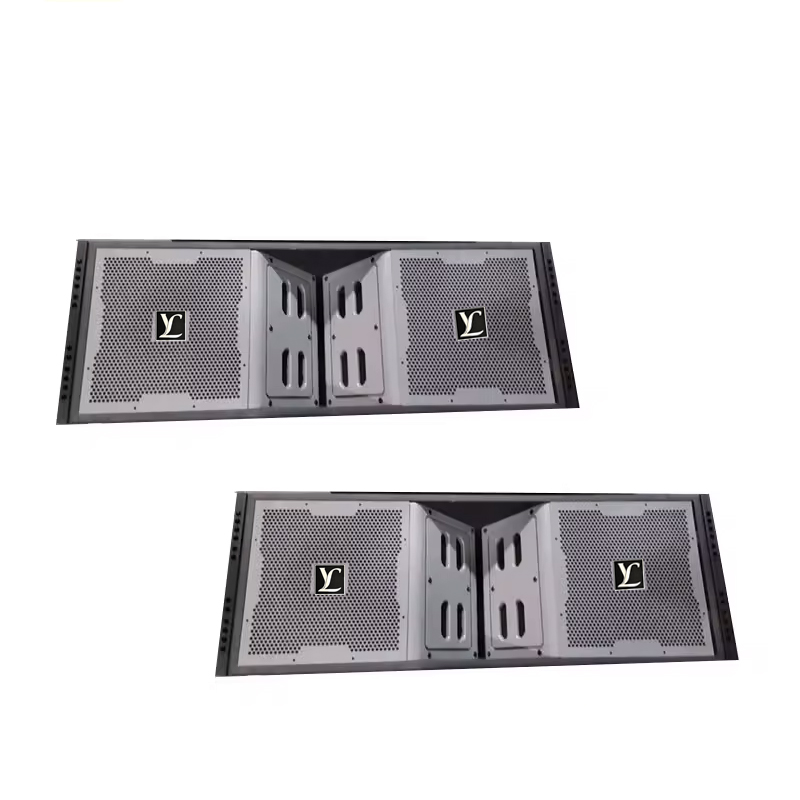

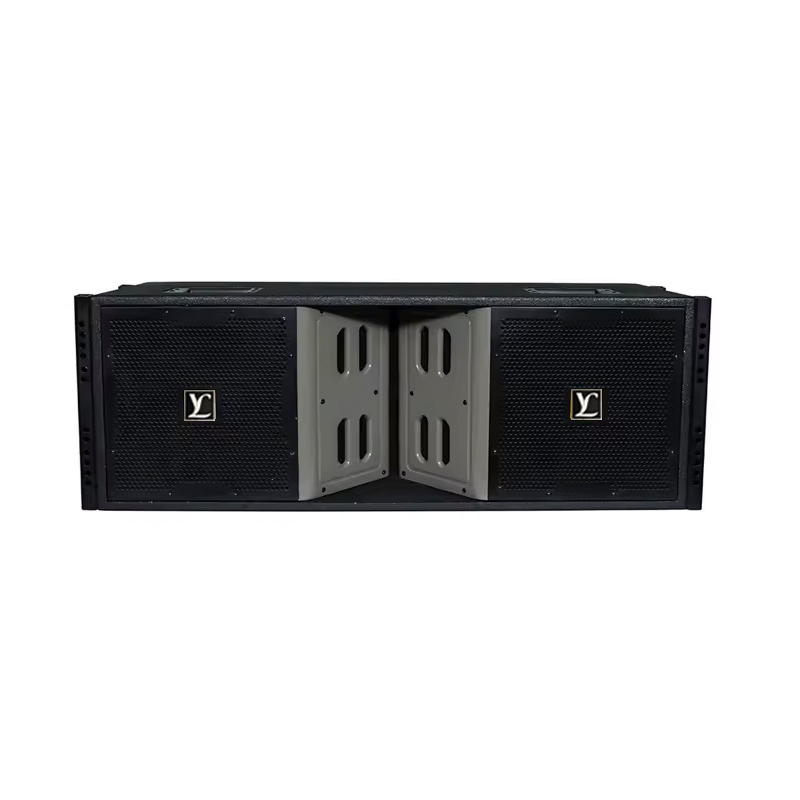

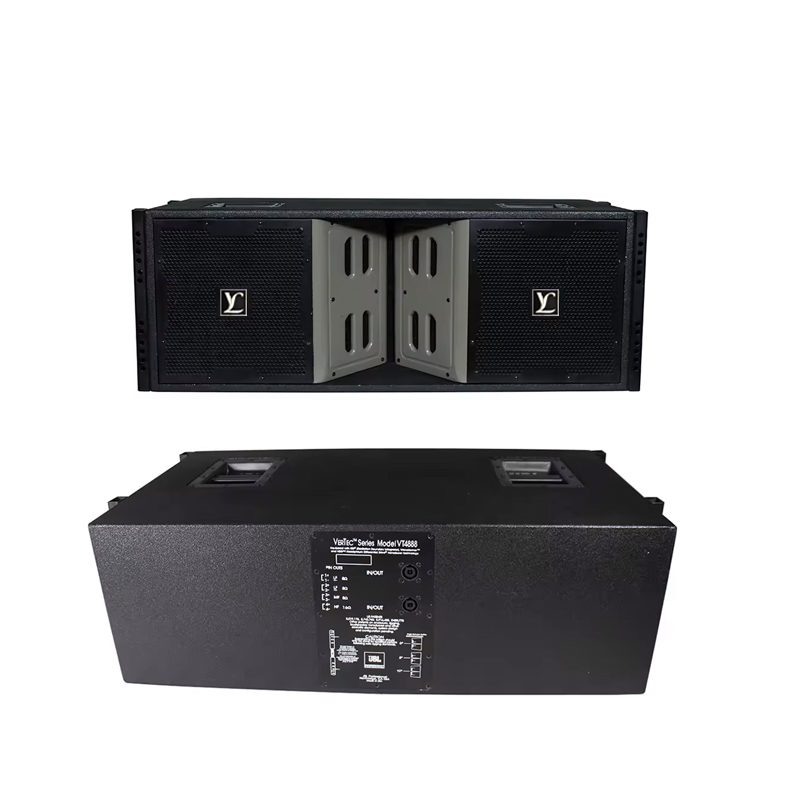

VT4888 dual 12 inch 3 way speaker box line array system

								speaker box line array system, 3 way speaker, 12 inch speaker box, speaker line array system, power pro audio speaker, speaker stage box audio, line array speaker audio professional, church sound audio system equipmen
SHARE:

Description

VT4888 speaker box line array system delivers exceptional audio performance for both live sound and installed applications. This advanced 2 way speaker system features three separate frequency drivers—low, mid, and high—each optimized for specific sound ranges, ensuring clear and powerful audio reproduction.


Key Features



Speaker line array system 3 way design: Incorporates dedicated drivers for low, mid, and high frequencies to provide a balanced and precise sound output.



2x12 inch high-performance woofers: Deliver deep bass and robust low-frequency response.

4x5.5 inch high-fidelity midrange drivers: Ensure clear and detailed midrange frequencies for vocals and instruments.

2x3 inch advanced high-frequency compression drivers: Produce crisp and clear high frequencies with extended range and minimal distortion.

Speaker stage box audio line array configuration: Designed for optimal sound dispersion and coverage, allowing consistent audio throughout the venue.

Durable construction: Built with high-quality materials for reliability and long-term performance in demanding environments.

Versatile application: Ideal for concerts, live performances, and permanent installations in various venues.



This 12-inch tri-amped line array speaker system is engineered to provide superior sound quality and coverage, making it a valuable addition to any professional audio setup.



 Specifications

Model

VT4888 dual 12 inch 3 way speaker box line   array system

Frequency Response

50Hz-18KHz

Driver

LF:   2 x 12" high efficiency Neodymium magnet driver
MF: 4 x 5.5" high efficiency Neodymium magnet driver
HF:   2 x 3" high efficiency Neodymium magnet driver

Power Rating

LF: 1200W Continuous,4800W Peak
MF: 320W Continuous,1280W Peak
HF: 180W Continuous,720W Peak

Nominal impedance

LF: 2 x 8 ohms
MF: 1 x 8 ohms
HF: 1 x 16 ohms

Sensitivity(1W/1M)

LF: 98 dB
MF: 100 dB
HF: 108 dB

MAX SPL

HF: 129dB continuous,135dB peak
MF: 129dB continuous, 135dB peak HF:130 dB continuous,136dB peak

High-freq. disp. (H°xV°)

90° × 7.5°
