Description

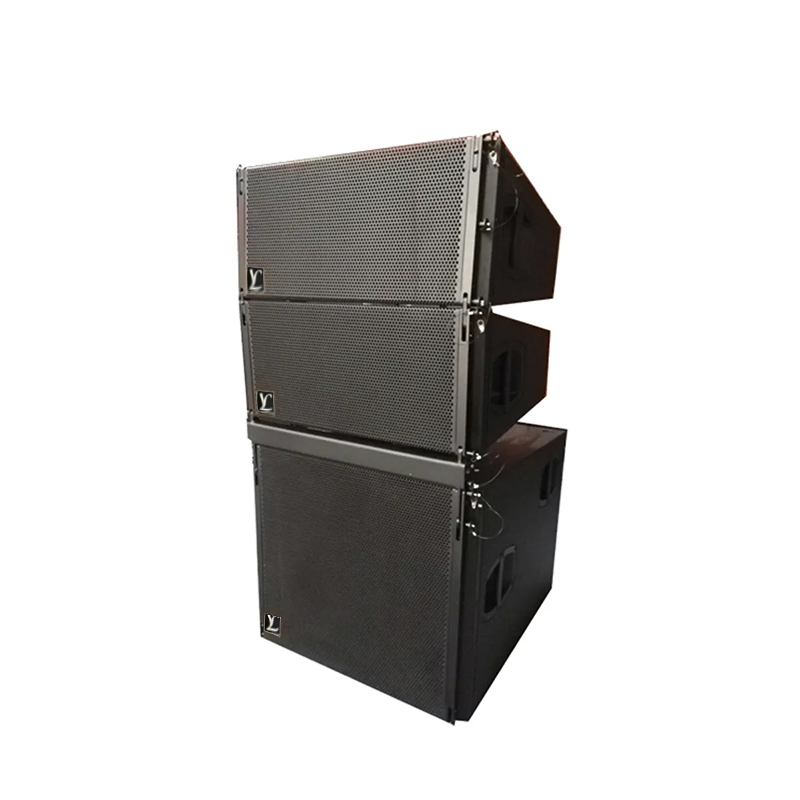

V8&V-SUB pro audio line array system designed to deliver unparalleled audio performance and versatility for a range of professional applications.

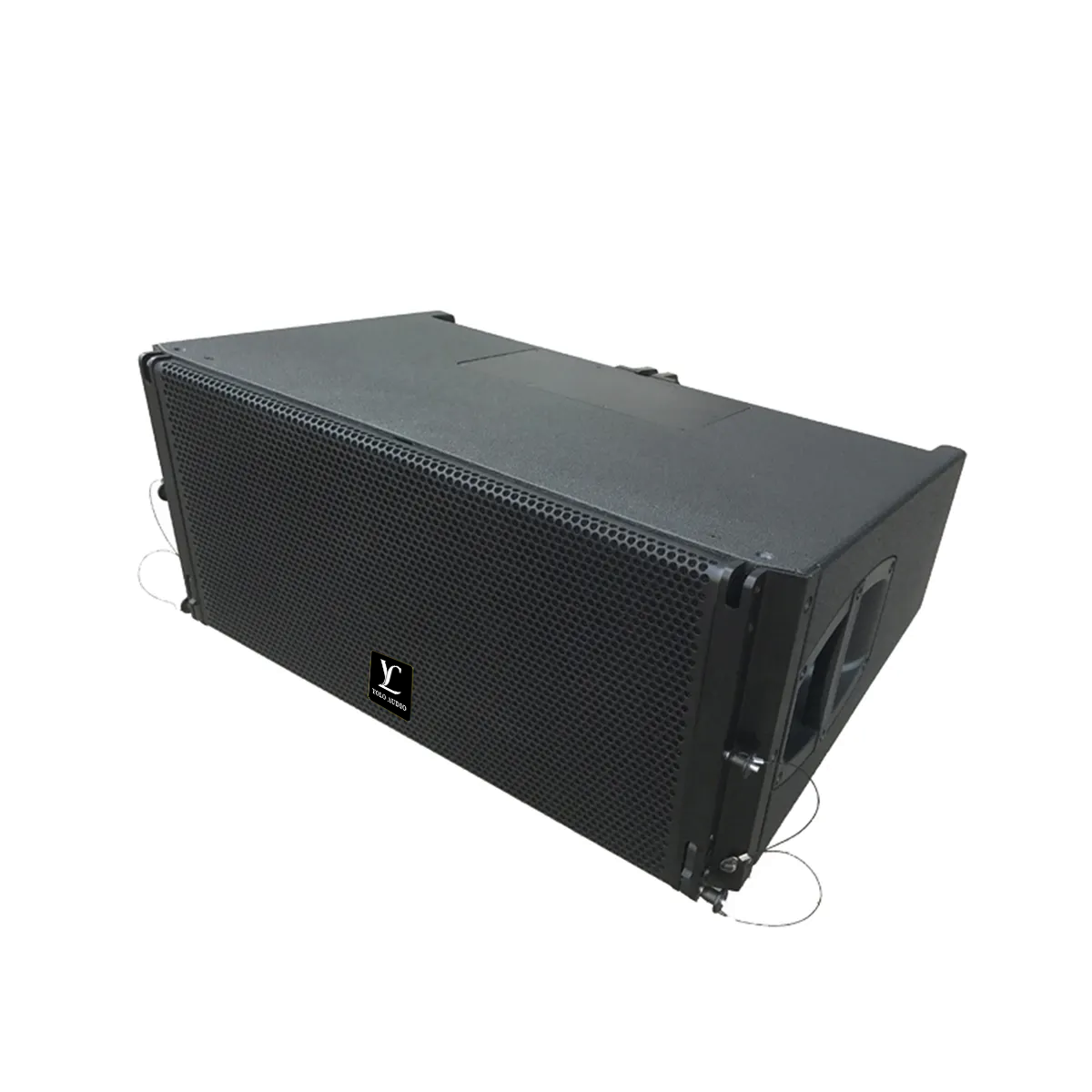

V8 3 way passive line array features 2 units 10 inch LF drivers and one unit 8 inch MF drive, provide powerful low-end response and exceptional clarity for mid-range frequencies. And 2 units 2.5 inch HF drivers provide crisp, detailed high-frequency reproduction.
V8 professional stage audio speaker is adapted advanced waveguide technology, enhances dispersion patterns, allowing for consistent coverage across large areas.

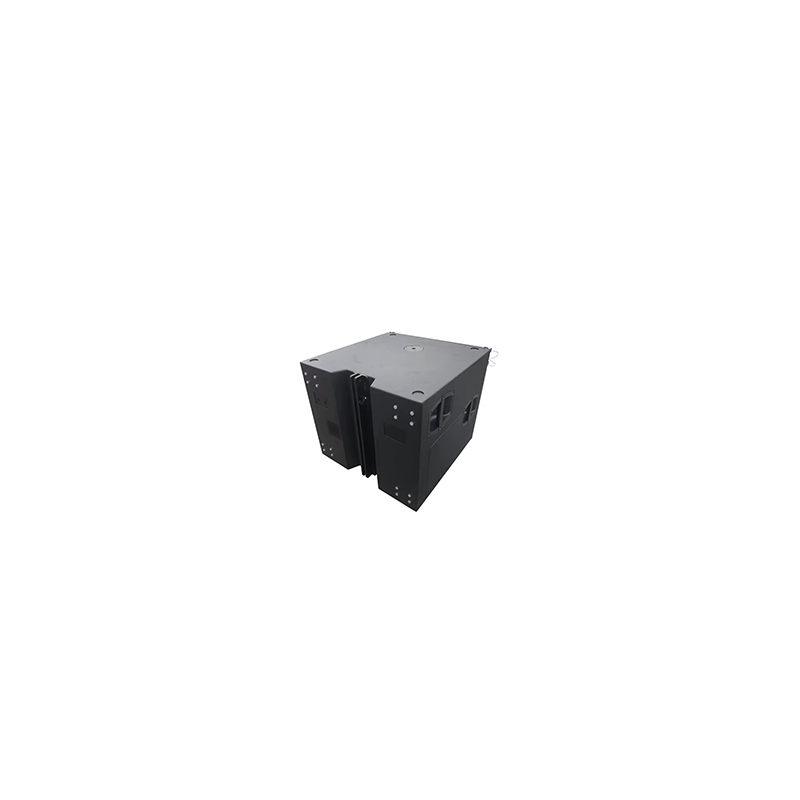

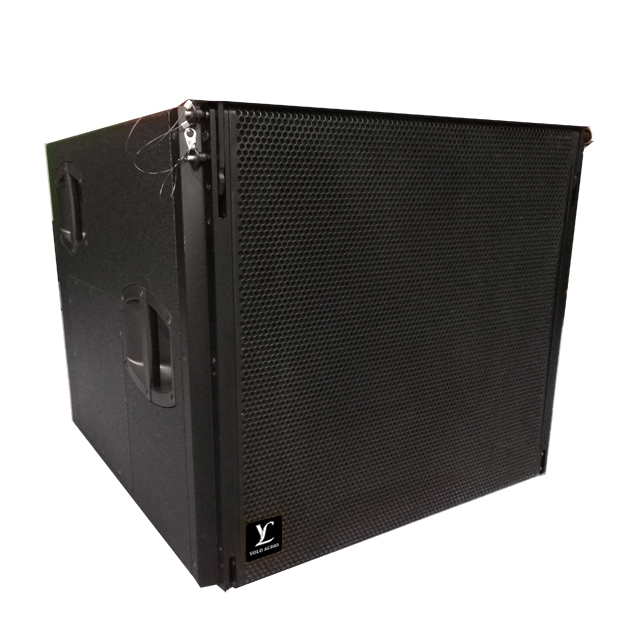

V-SUB cardioid subwoofer consist of one 18 inch and one 12 inch bass woofer offers robust low-frequency output with minimal distortion. The line array Inch Subwoofer is engineered to complement the line array audio system by delivering deep, impactful bass.
Features
2x10 inch; 1x8 inch; 2x2.5 inch neodymium speaker drivers
Good quality birch plywood
Waterproof polyurea paint
Safety rigging hardware system
Application
This versatile sound system audio equipment is ideal for a variety of professional settings, include:
Live Music Venues: Delivering full-range sound and powerful bass for concerts and performances.
Corporate Events: Providing clear audio for presentations, seminars, and conferences.
Theatrical Productions: Ensuring precise sound reproduction for dialogue and sound effects.
Outdoor Events: Offering reliable performance in open-air environments with substantial coverage.
Specification
V8 pro audio line array
Frequency response (–5 dB standard) | 67 Hz - 18 kHz |
Frequency response (–5 dB CUT mode) | 100 Hz - 18 kHz |
Configuration | High performance 3-way passive line array loudspeaker |
Nominal impedance | 8 Ω |
Power handling capacity (RMS/peak 10 ms) | 500/2000 W |
Components | 2 x 10" neodymium driver / 1 x 8" driver |
Connections | 2 x NLT4 |
Dimensions (H x W x D) | 310 x 700 x 460 mm |
Weight | 34 kg |
V-SUB 18" and 12 " bass subwoofer:
Frequency response (–5 dB standard) | 37 - 115 Hz |
Configuration | High performance flyable cardioid subwoofer |
Nominal impedance | 8 Ω |
Power handling capacity (RMS/peak 10 ms) | 800/3200 W |
Splay angle settings | 0° and 2.5° |
Components | 1 x 18" driver |
| Connections | 2 x NLT4 F/M optional 2 x NL4 or 2 x EP5 |
| Dimensions (H x W x D) | 606 x 700 x 7283 / 830 mm |
Weight | 64 kg |
